Specification

400W_Folding_Solar_Panel_Dimension.jpg__PID:5416deda-83d9-4a3d-b6fa-b4982de8a538
General:

Silicon Material : Mono crystalline

Connector: MC4

Waterproof Level: IP67

Operating Temperature: -20℃ to +60 ℃

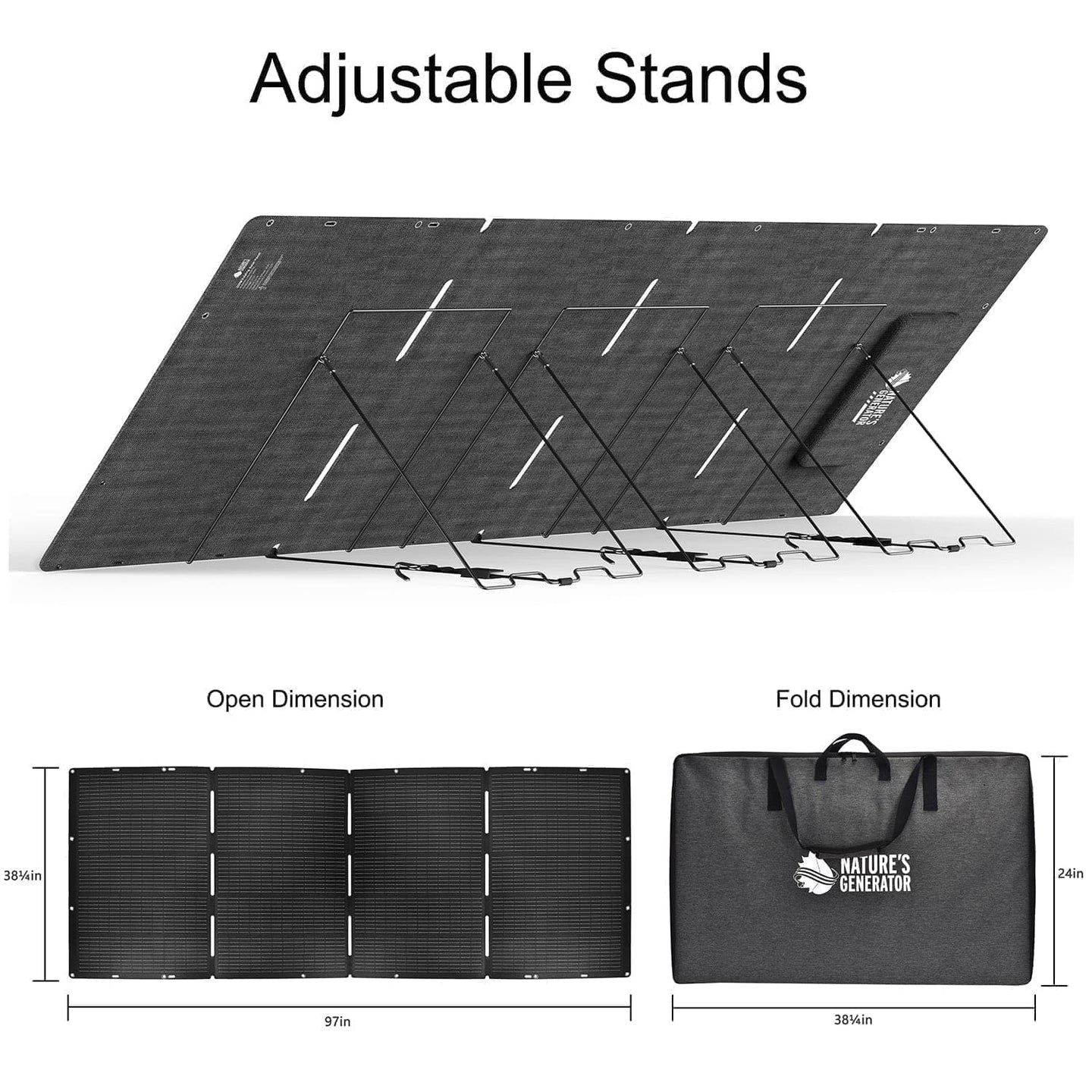

Dimension & Weight:

Folded: 38.3*24*3.4inch (972*605*85mm)

Unfolded: 97*38.3*1.4inch (2462*972*35mm)

Weight: 17Ib (7.8kg)

Power Rating:

Max. Power Output Pmax (@STC): 400W

Cell transfer efficiency: 23%

Power Voltage: 34.41V

Power Current: 11.62A

Open Circuit Voltage: 39.77V

Short Circuit Current: 12.21A

What's in the Box:

1x Nature's Generator 400W Folding Solar Panel

1x User Guide

Product Comparison
-- 400W Folding Solar Panel
400W Folding Solar Panel
200W Folding Solar Panel
200W Folding Solar Panel
Max Power Output Pmax (@STC) 400W 200W
Silicon Material Mono crystalline silicon Mono crystalline silicon
Cell Transfer Efficiency 23% 23%
Power Voltage 34.41V 17.1V
Power Current 11.62A 11.7A
Open Circuit Voltage 39.77V 20.4V
Dimension(Folded) 38.3*24*3.4inch
(972*605*85mm)
24*23*3.4inch
(600*588*85mm)
Dimension(Unfolded) 97*38.3*1.4inch
(2462*972*35mm)
88*23*1.4inch
(2233*588*35mm)
Weight 17Ib (7.8kg) 13.2Ib (6.0Kg)
