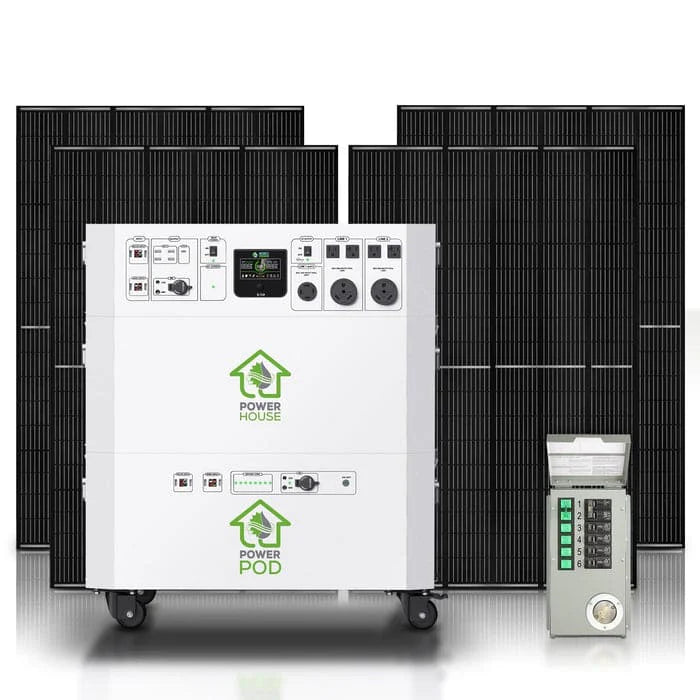

Specification & Technical Information

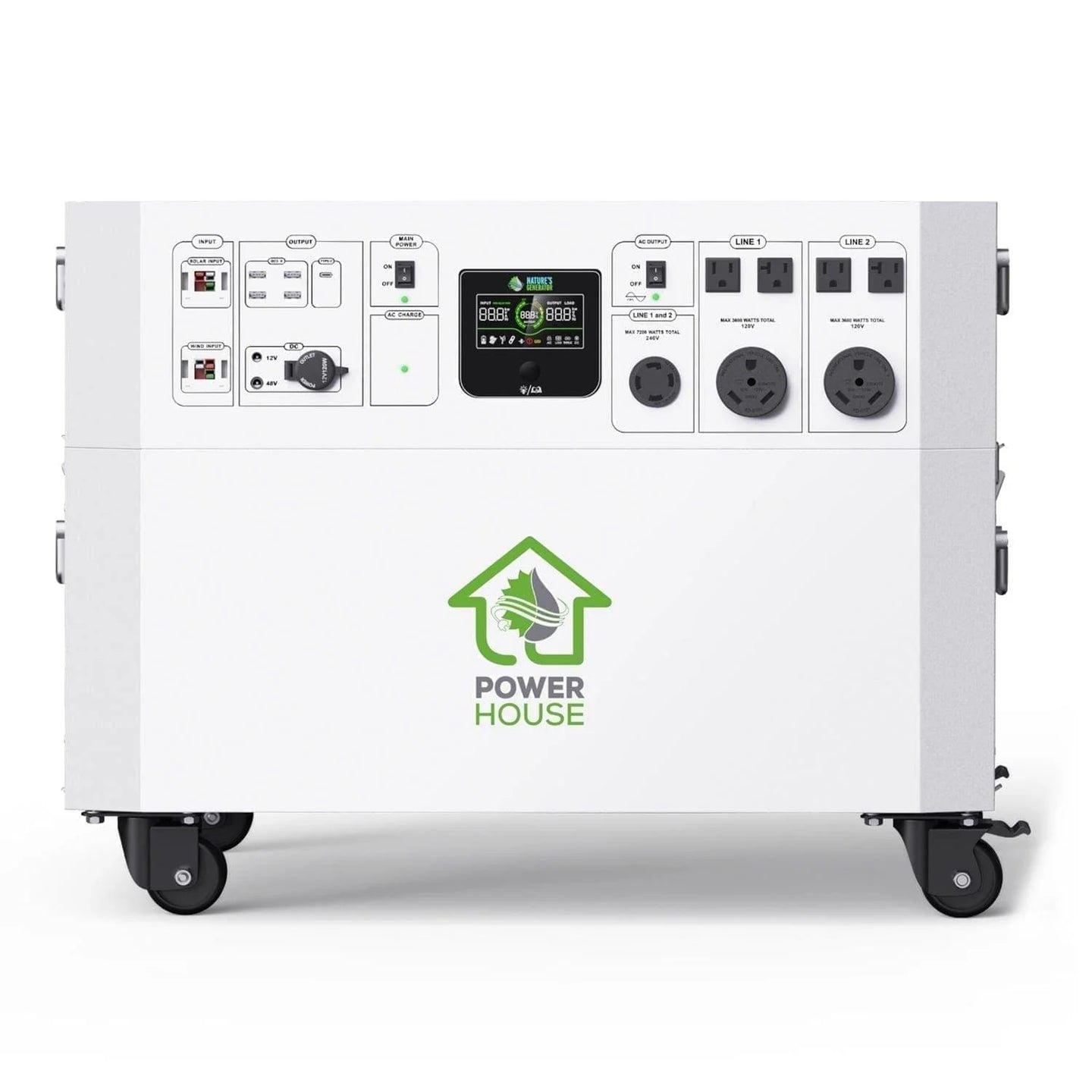

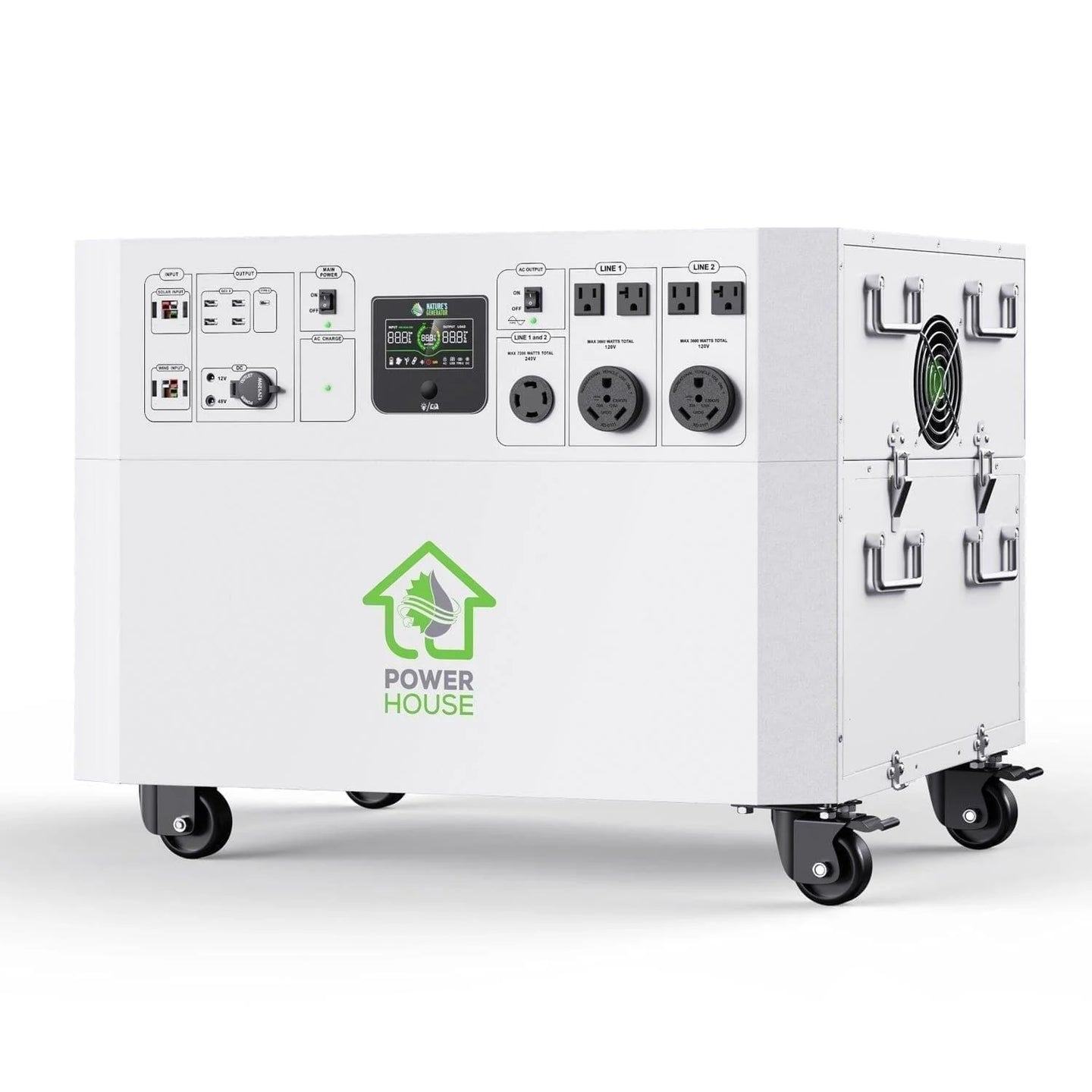

Powerhouse
Battery

Type: AGM Sealed Lead Acid
Capacity: 48V 100Ah (4800Wh)
Self-discharge: Recommend to recharge every 4 months

Dimensions

Power house : 28 x 18 x 19 inches (720*466*472.8mm)

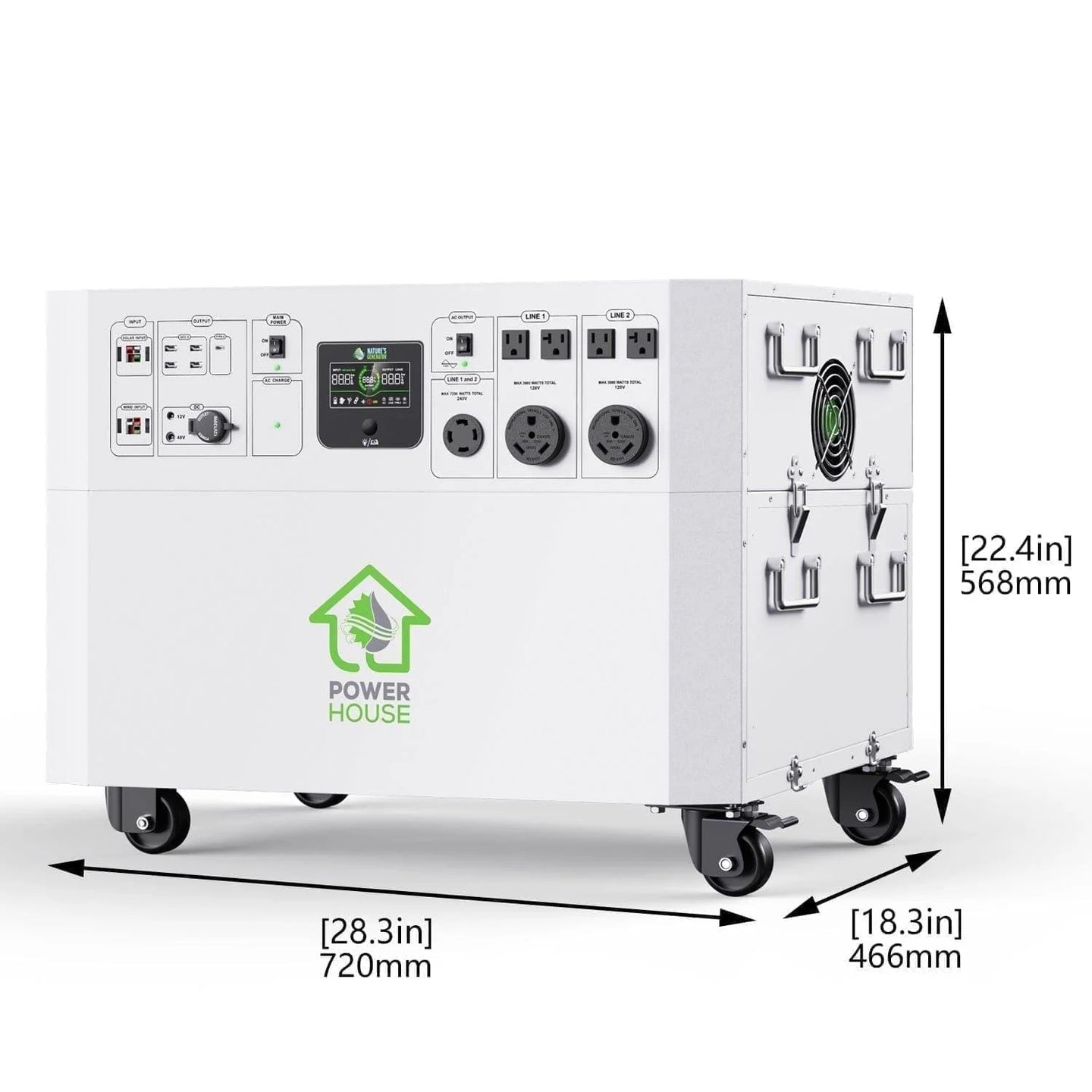

Power house with wheel: 28 x 18 x 22.36 inches (720*466*568mm)

Inverter

Output Power: 7200 watt max
Output voltage: 240V Split Phase
Output voltage: 120V Single Phase
Output frequency: 60Hz
Output Sine Wave: Pure sine wave
Output Phase: Split phase

Operating temperature
32-104 °F (0-40 °C)
PortsUSB -A Port:  5V, up to 3A (15W)
12V DC Port: up to 20A (240W max)
Expansion Port: 350A fuse
Storage Temperature

 23–111 °F (-5–45 °C)

Charges

AC Charger: 1300W, 120V AC
AC Charger Indicator: red (charging) and green (charged)
Solar Charger: 2000W
Wind Charger: 1000W

Weight

434 lbs (197 kg)

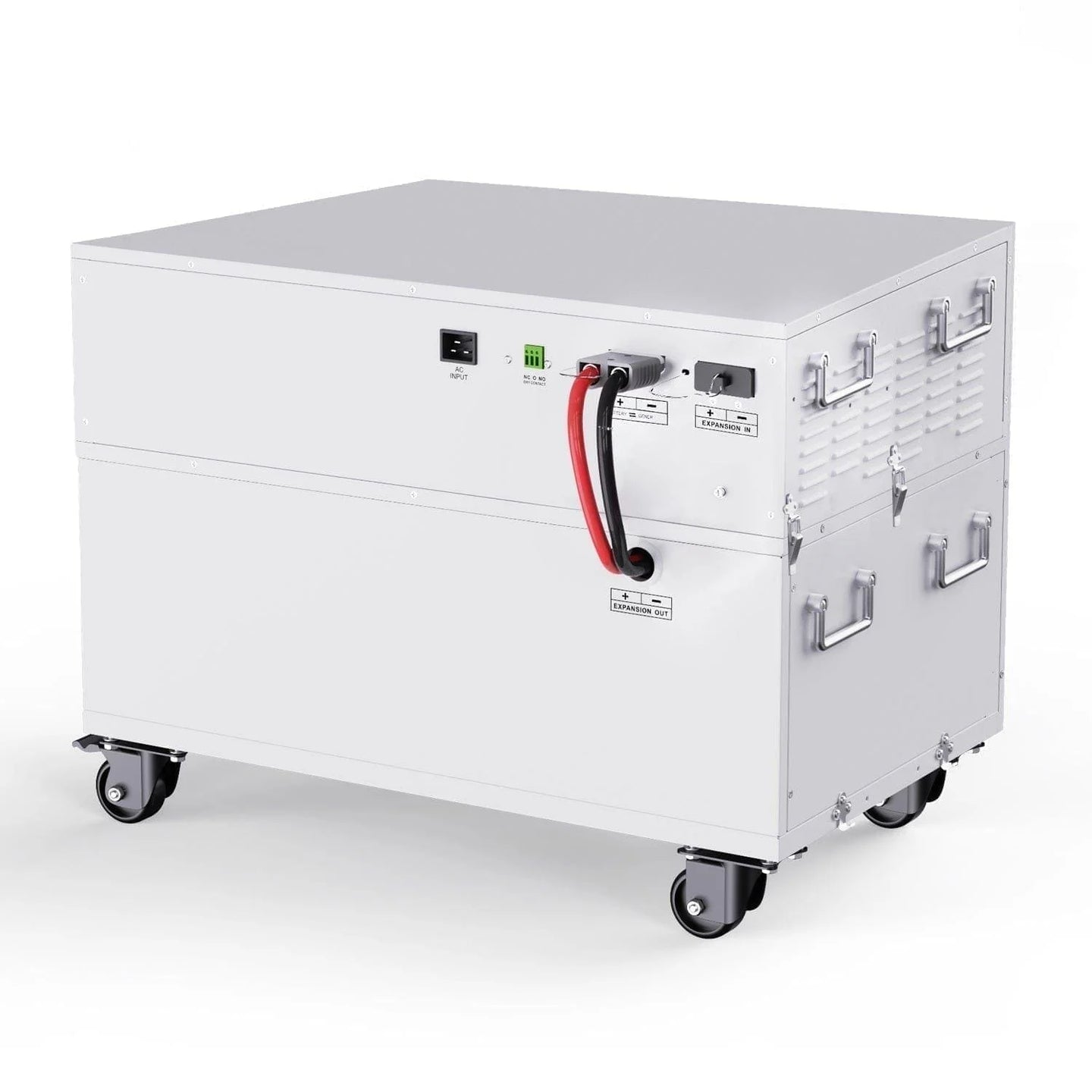

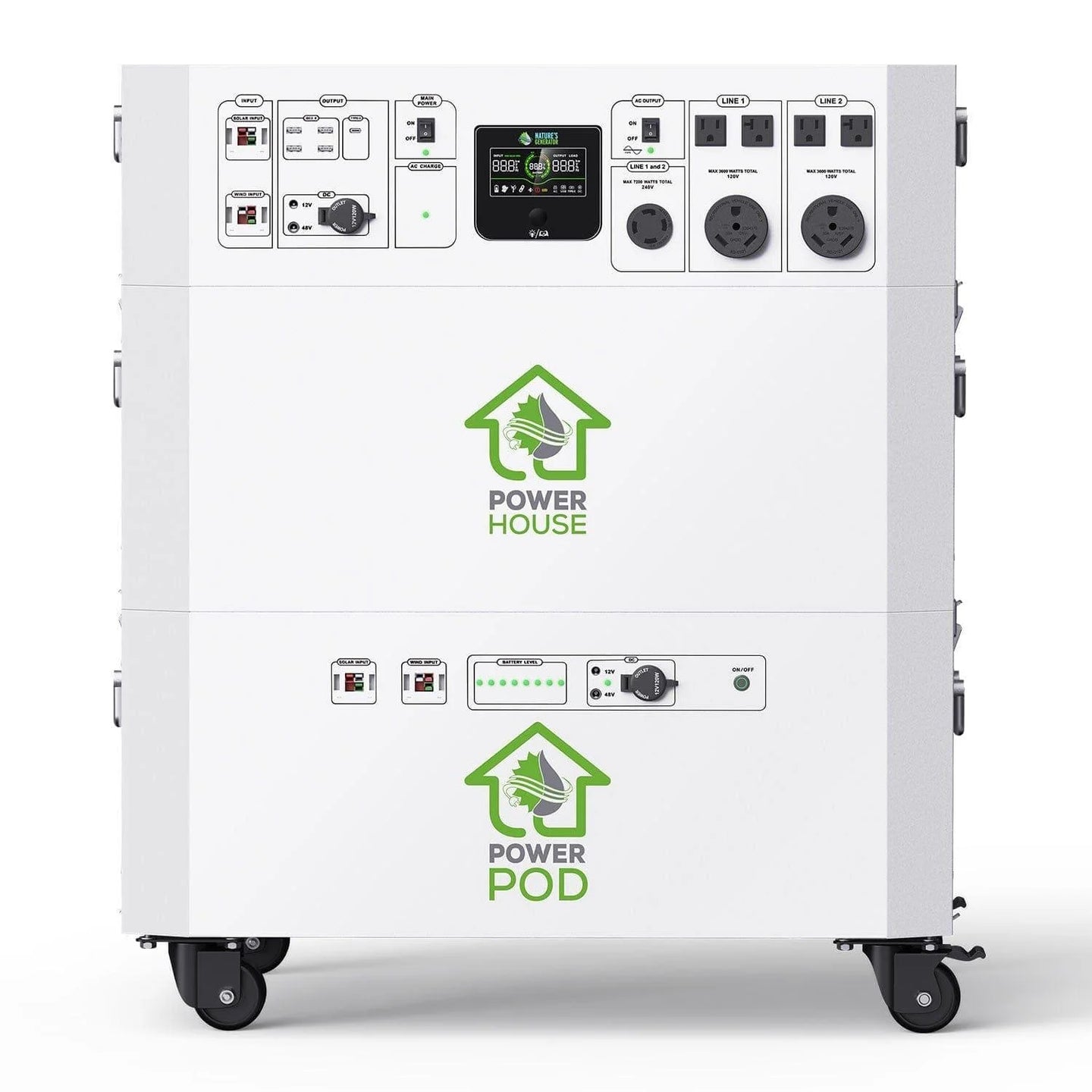

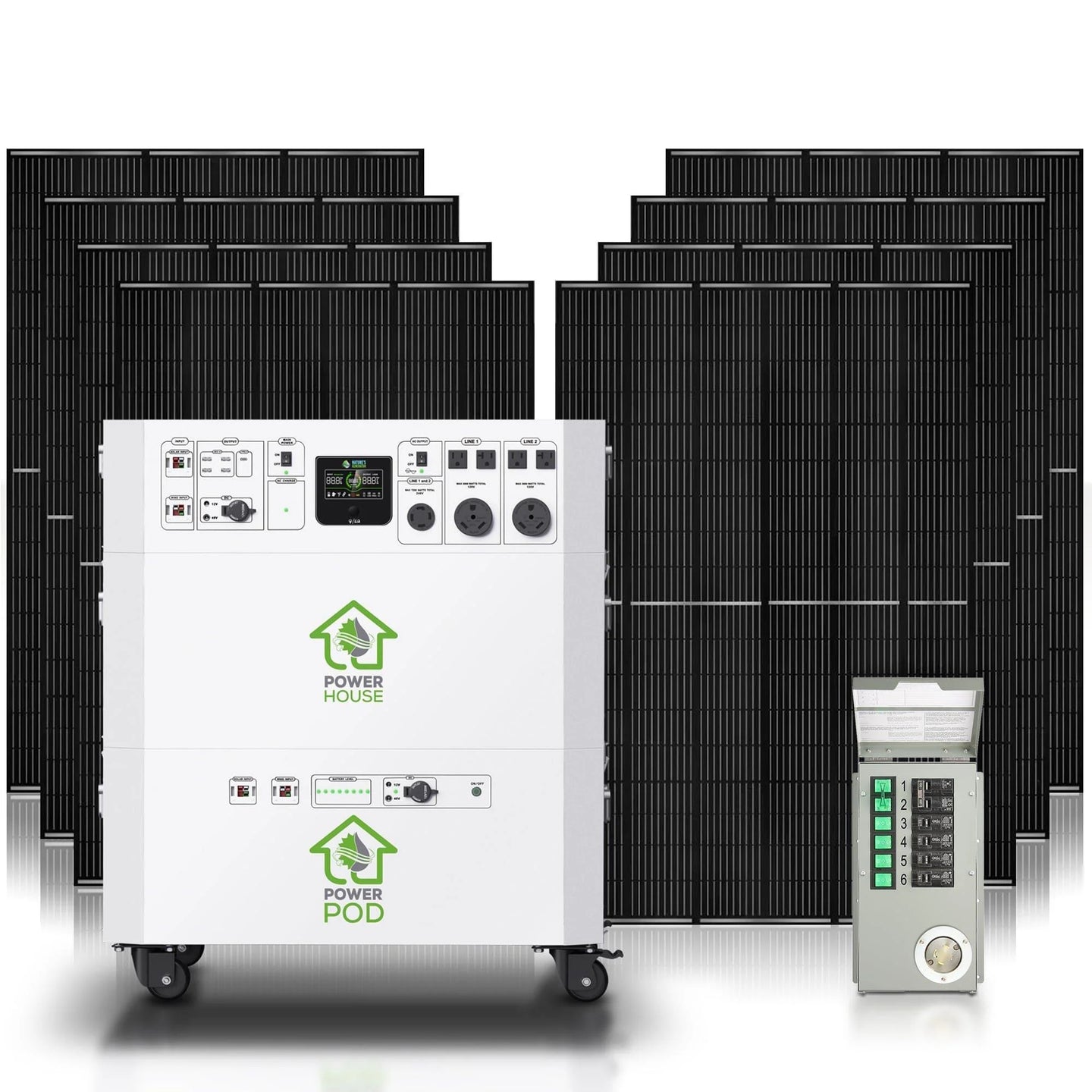

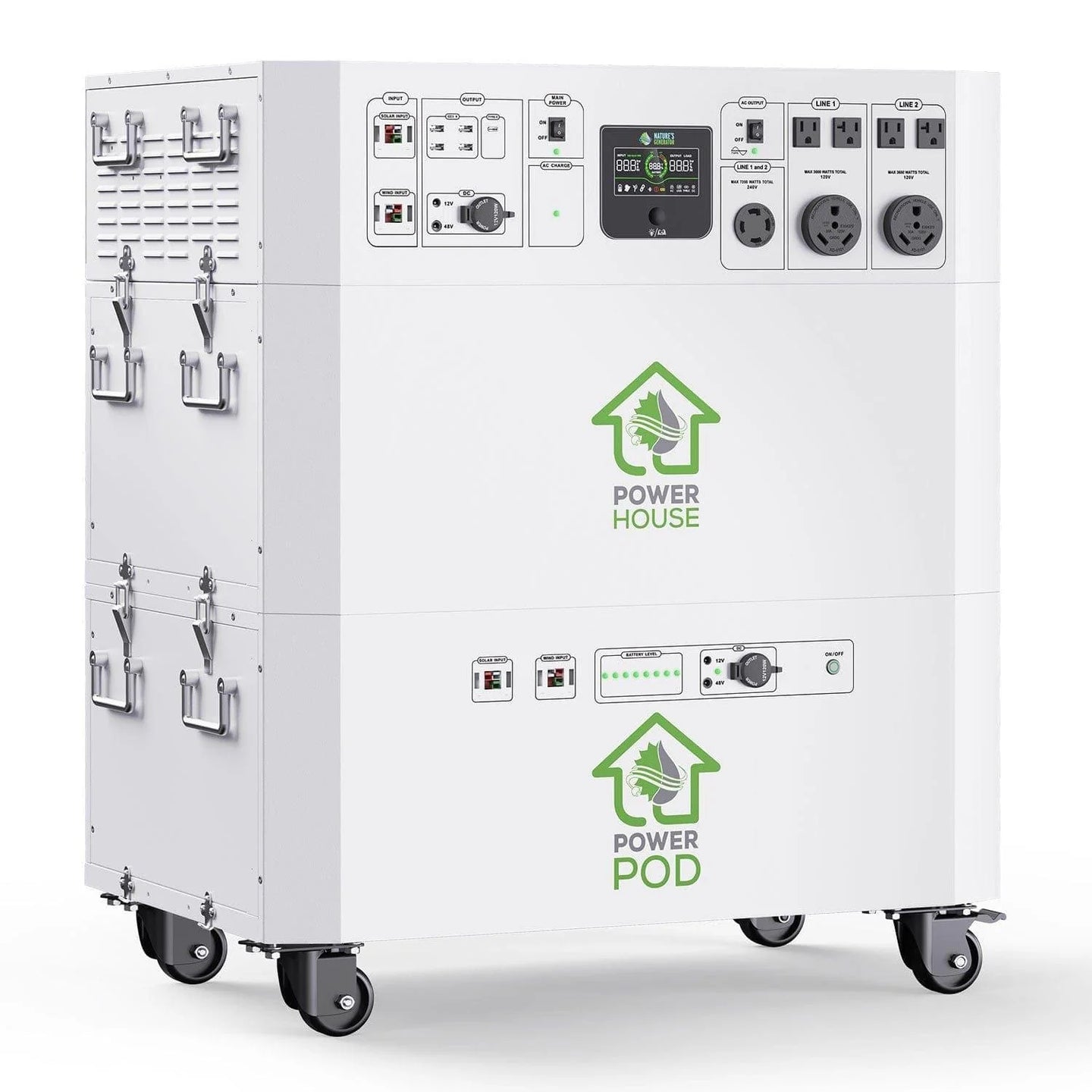

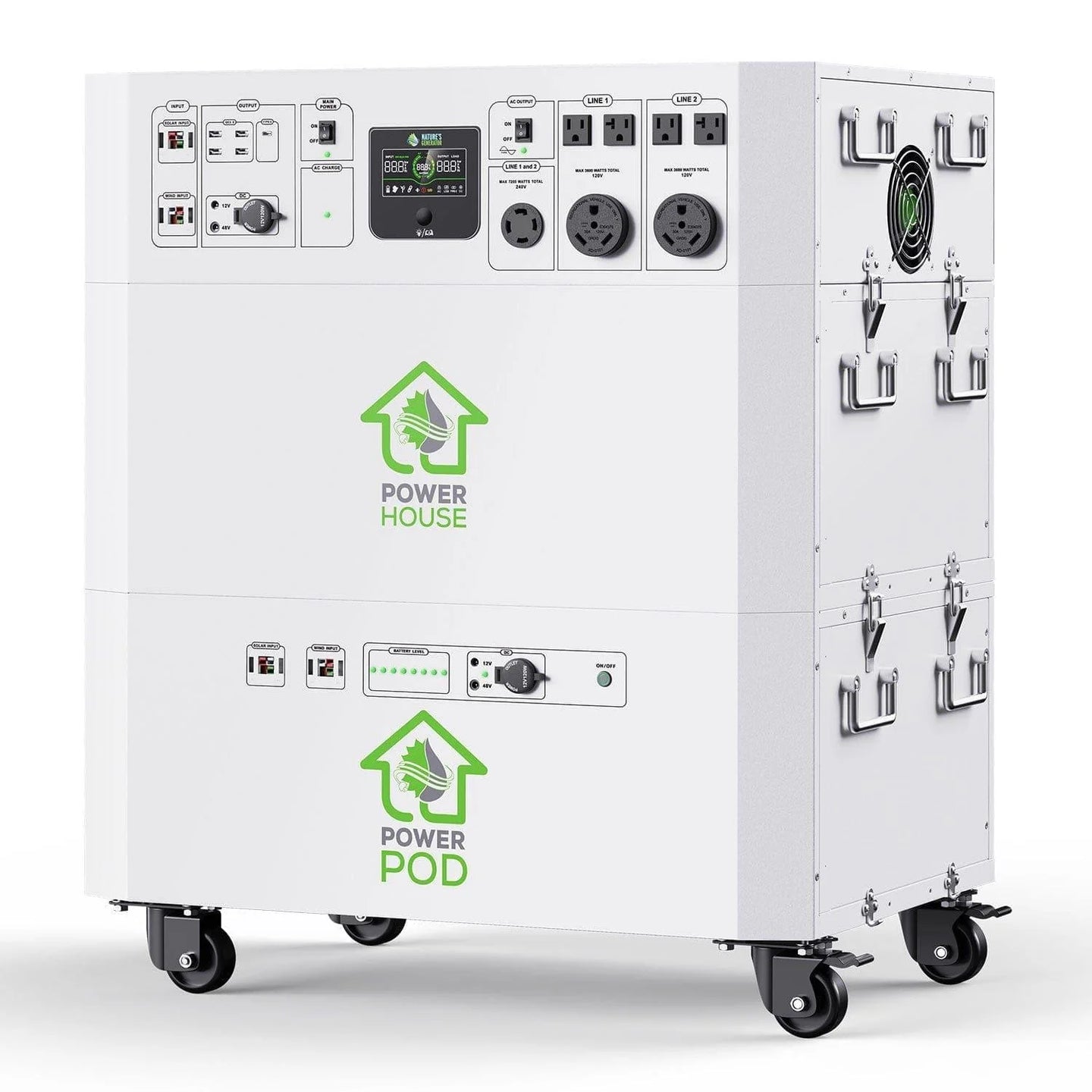

Powerhouse Power POD

Battery

Type: AGM Sealed Lead Acid
Capacity: 48V 100Ah (4800Wh)
Self-discharge: Recommend to recharge every 4 months

Dimensions

 Power house : 28 x 18 x 19 inches (720*466*472.8mm)
Power house with wheel: 28 x 18 x 22.36 inches (720*466*568mm)

Charges

Solar Charger: 2000watt
Wind Charger: 1000watt
Battery Level LED lights: 8 LED lights

Ports

12V Socket: 10A max
12V Port: 10A max
48V Port: 5A max
Expansion Cable: 43 inch

Storage Temperature

 23–111 °F (-5–45 °C)

Operating temperature

32-104 °F (0-40 °C)

Weight

295 lbs (134 kg)

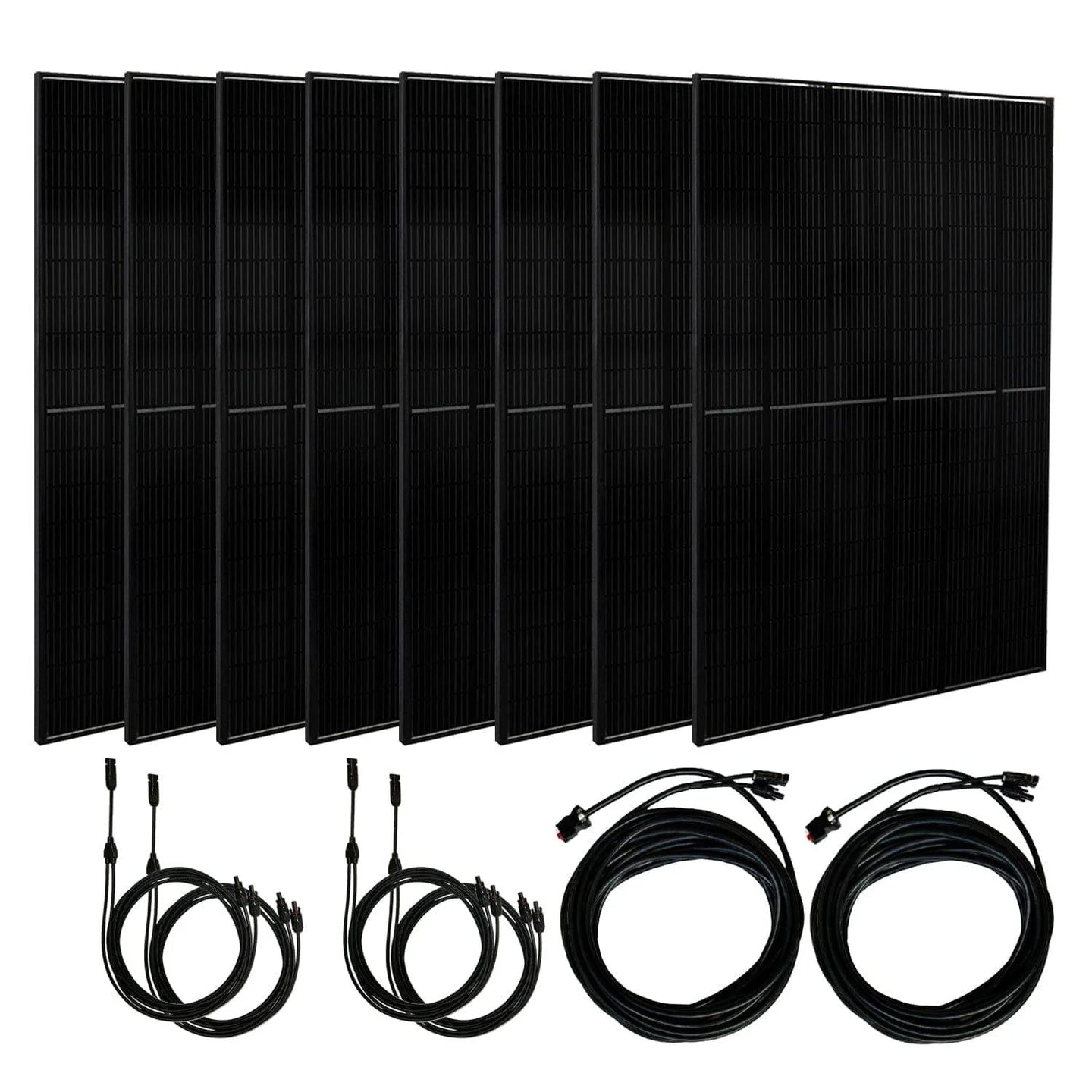

Powerhouse Power Panel

Power Rating & Characteristics

Maximum Power (Pmax): 410W
Maximum Power Voltage (Vmp): 31.35
Maximum Power Current (Imp): 13.08
Open-circuit Voltage (Voc): 37.12
Short-circuit Current (Isc): 13.96
Module Efficiency STC (%): 20.97%

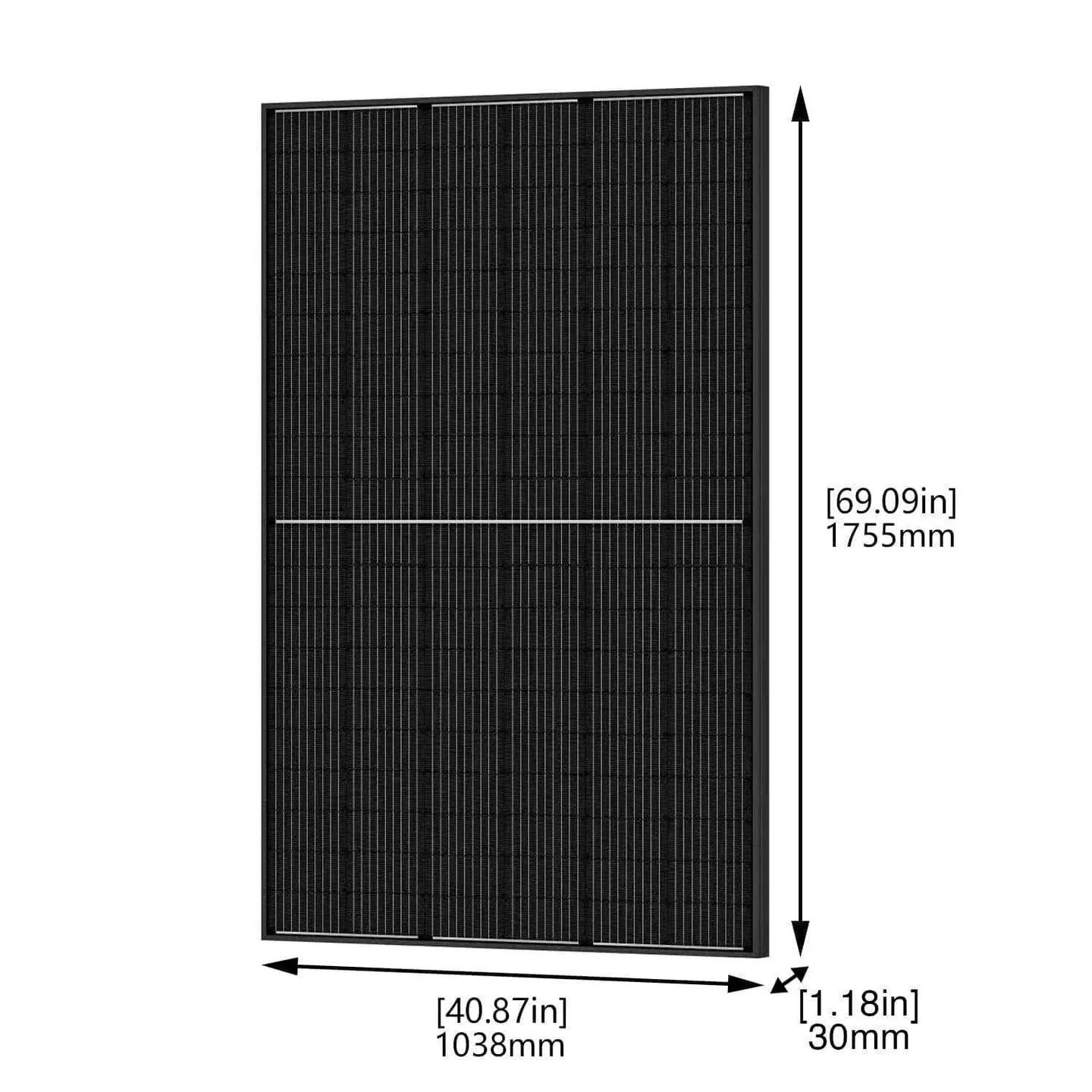

Dimensions

1755*1038*30mm(69.09*40.87*1.18 inch)
Cell Type: Mono PERC 182×91mm
No. of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy

Front Glass

3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass

Operation Temperature

-40℃~+85℃ (-40°F ~+185°F )

Junction Box

IP68 Rated, connector compatible with MC4

Output Cables

1200mm (47.24 inch)

Fire rating

UL: Type 1, IEC: Class C

Weight

20.5 kg (45.19 lbs)

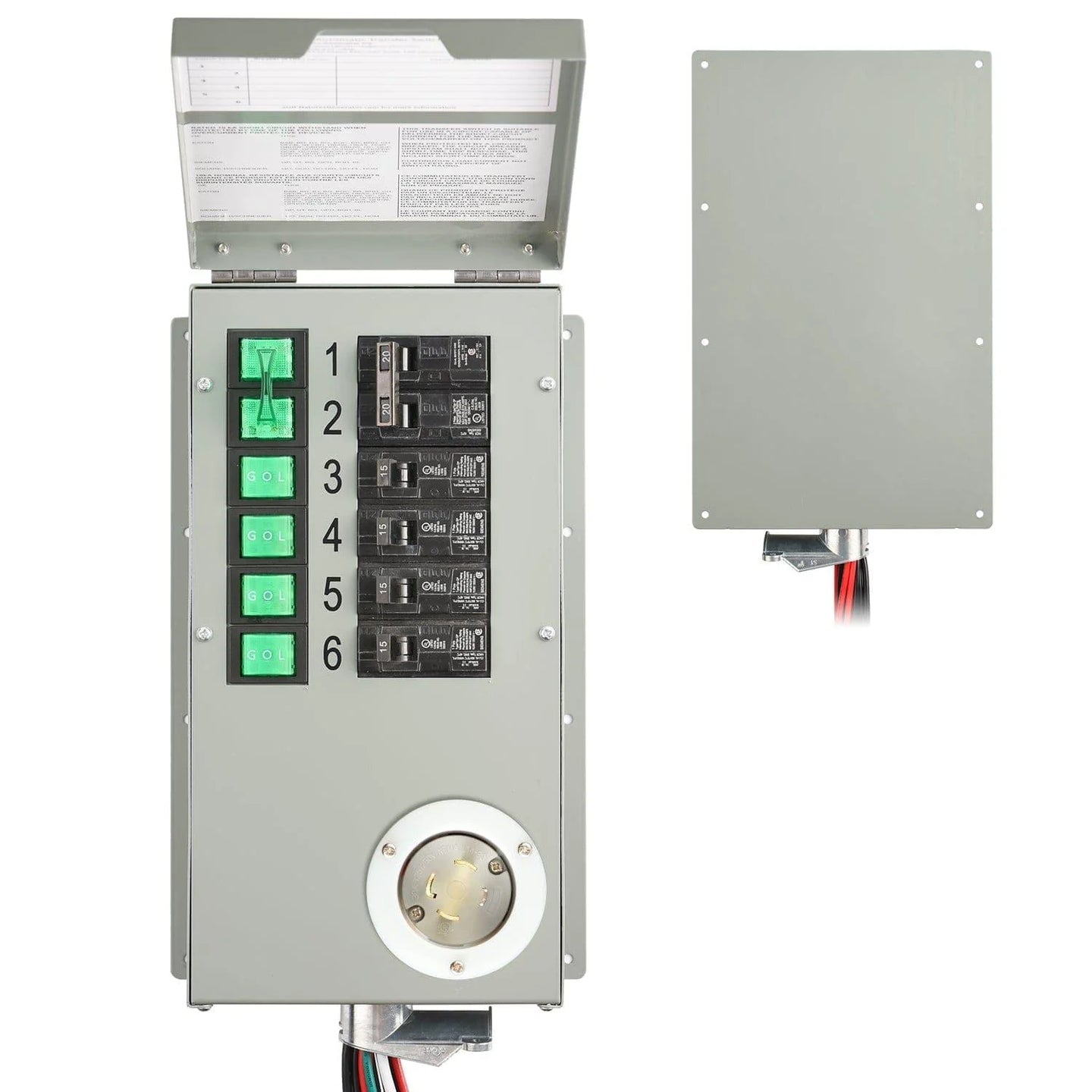

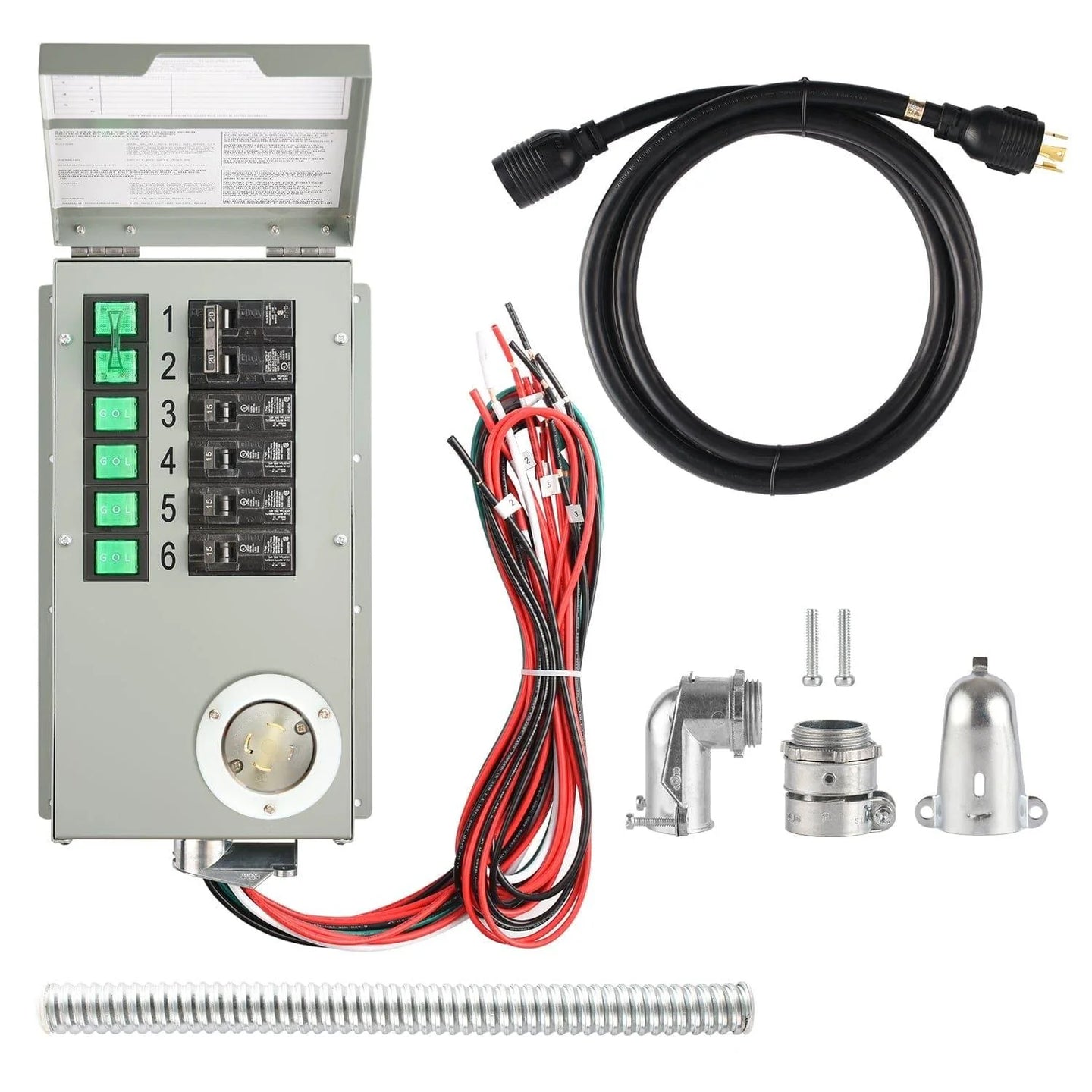

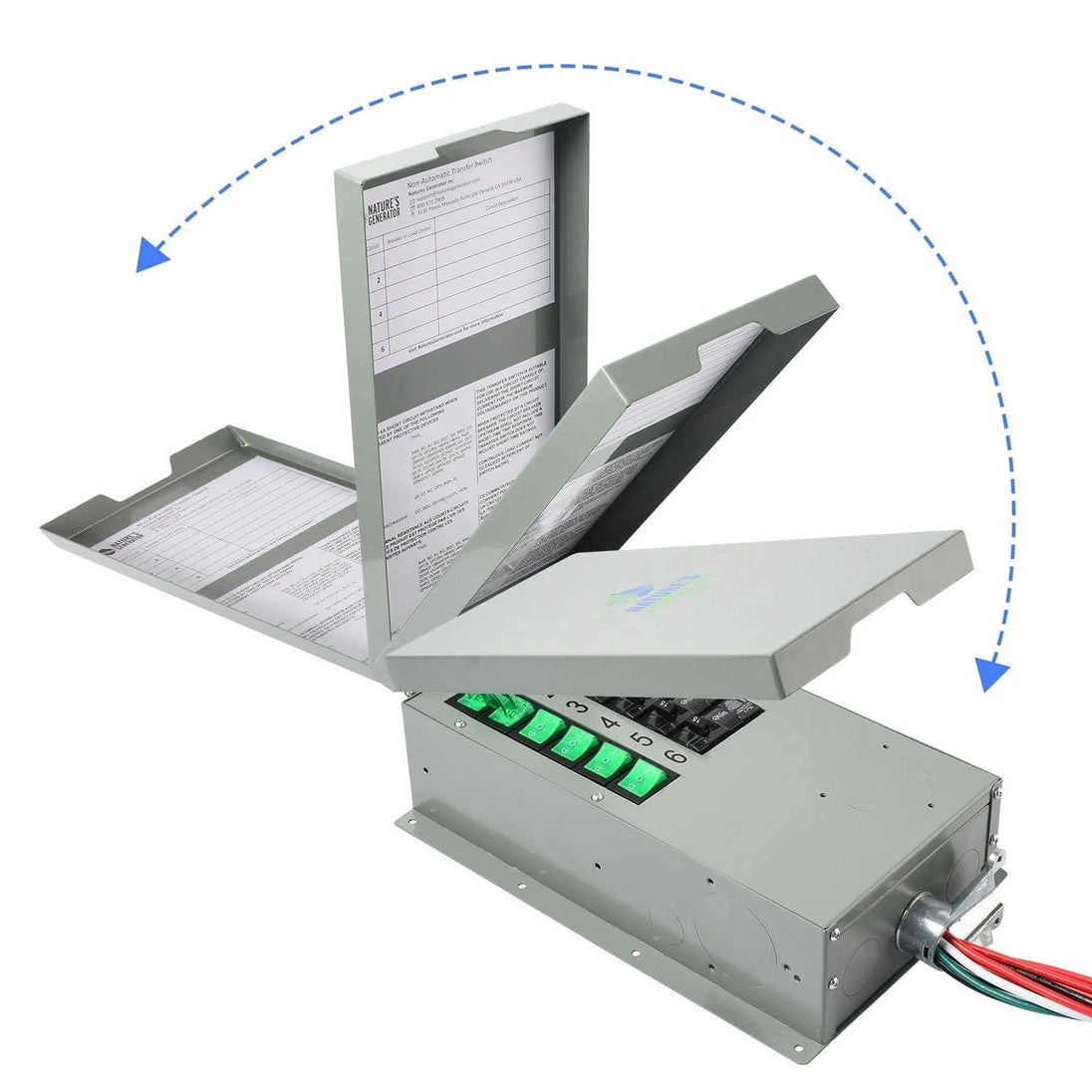

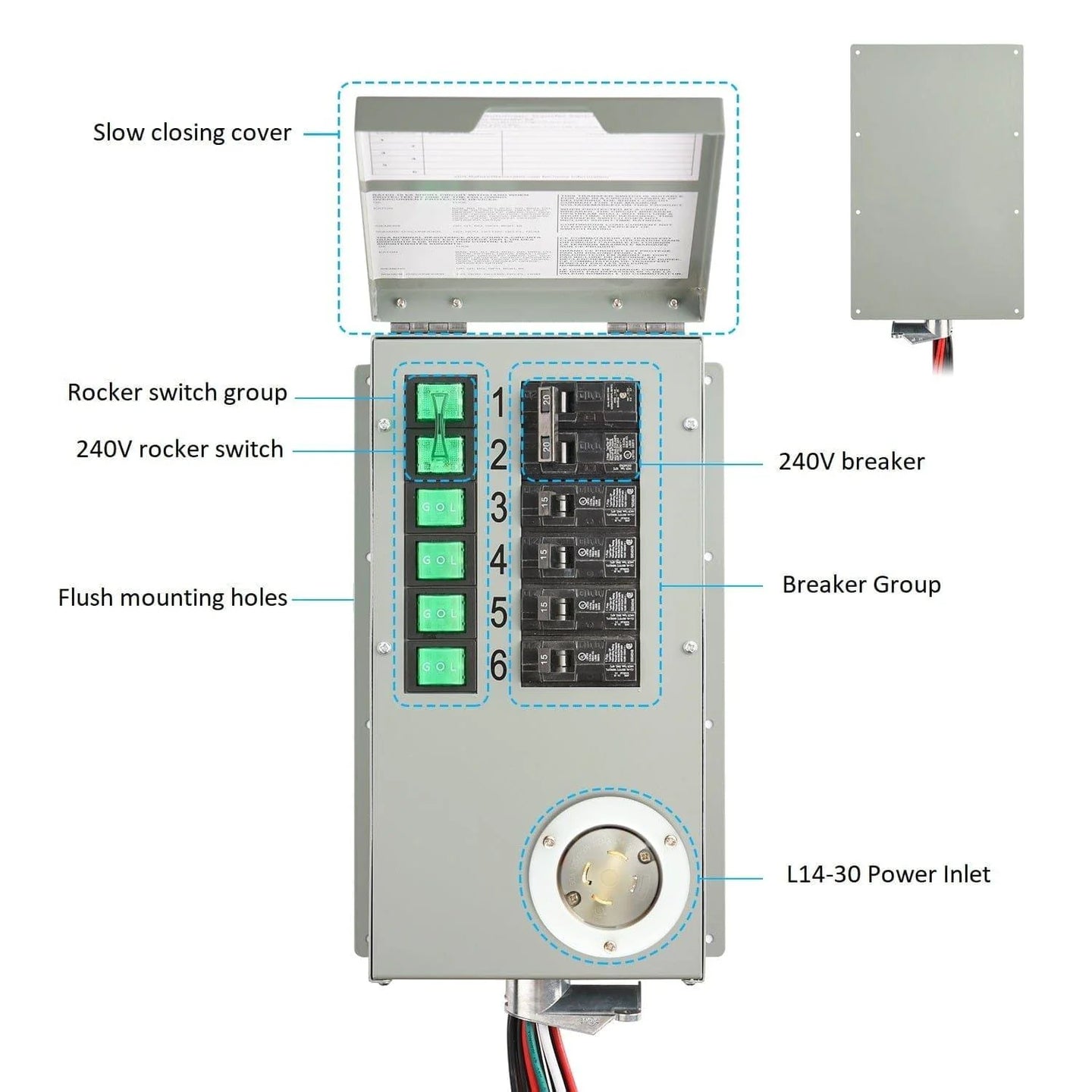

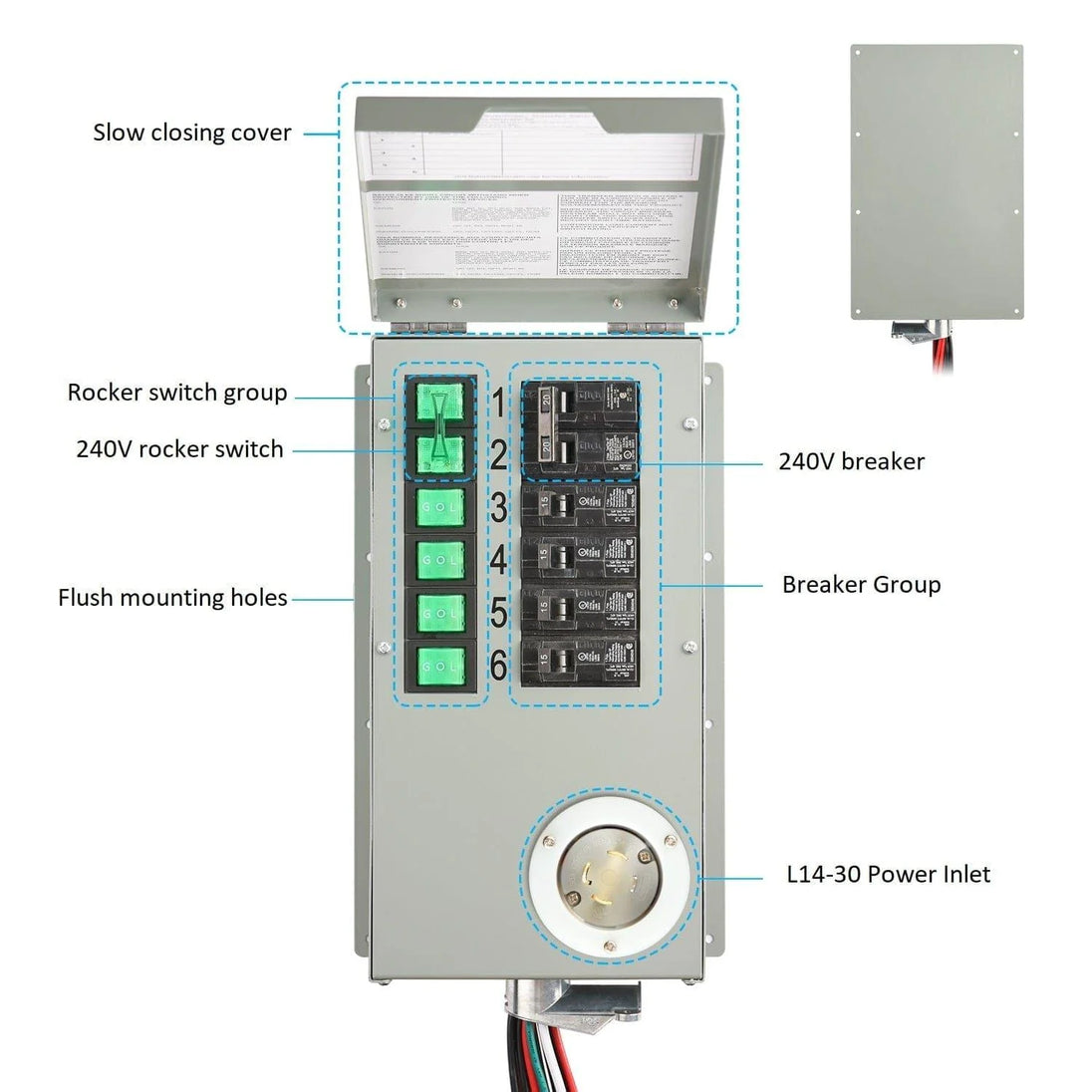

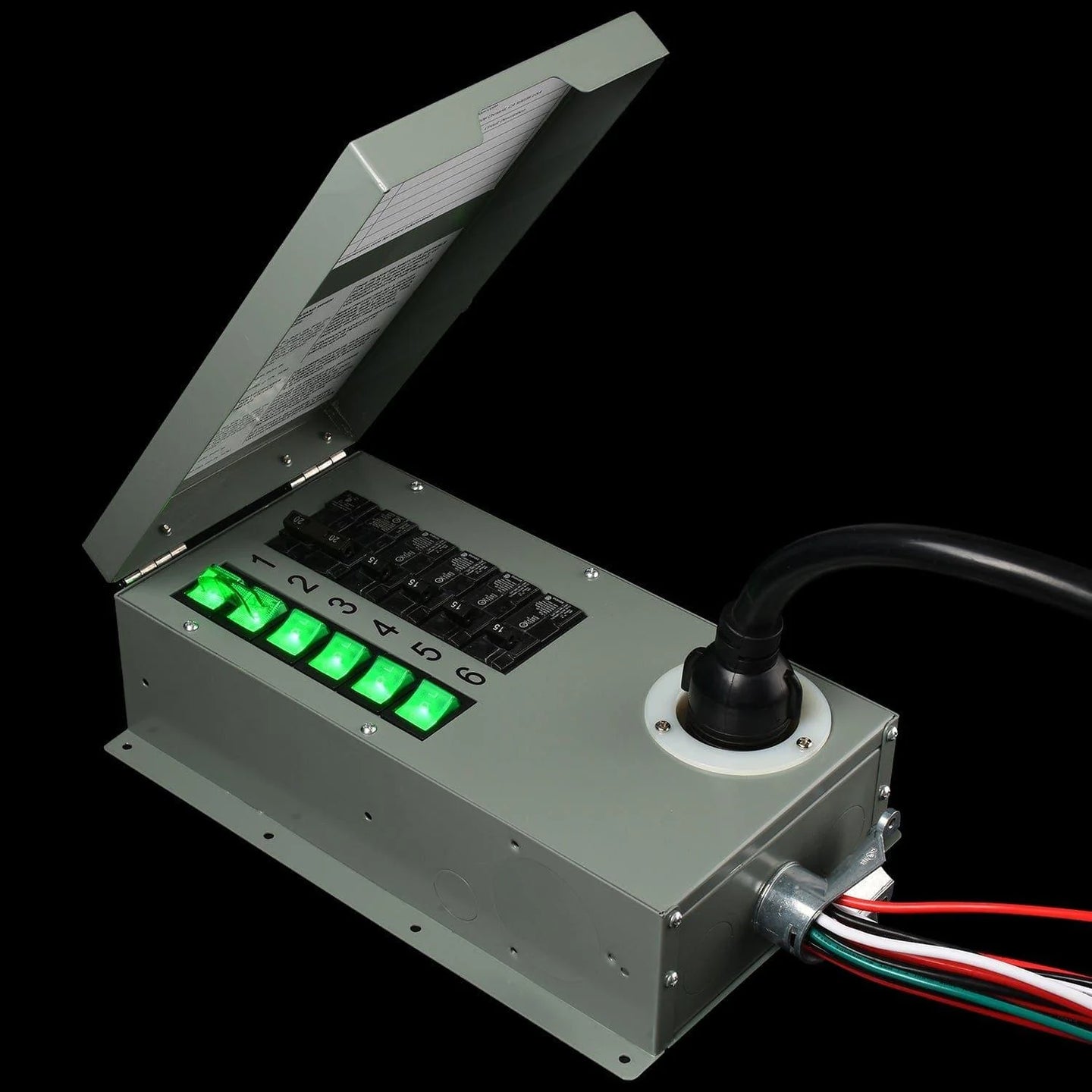

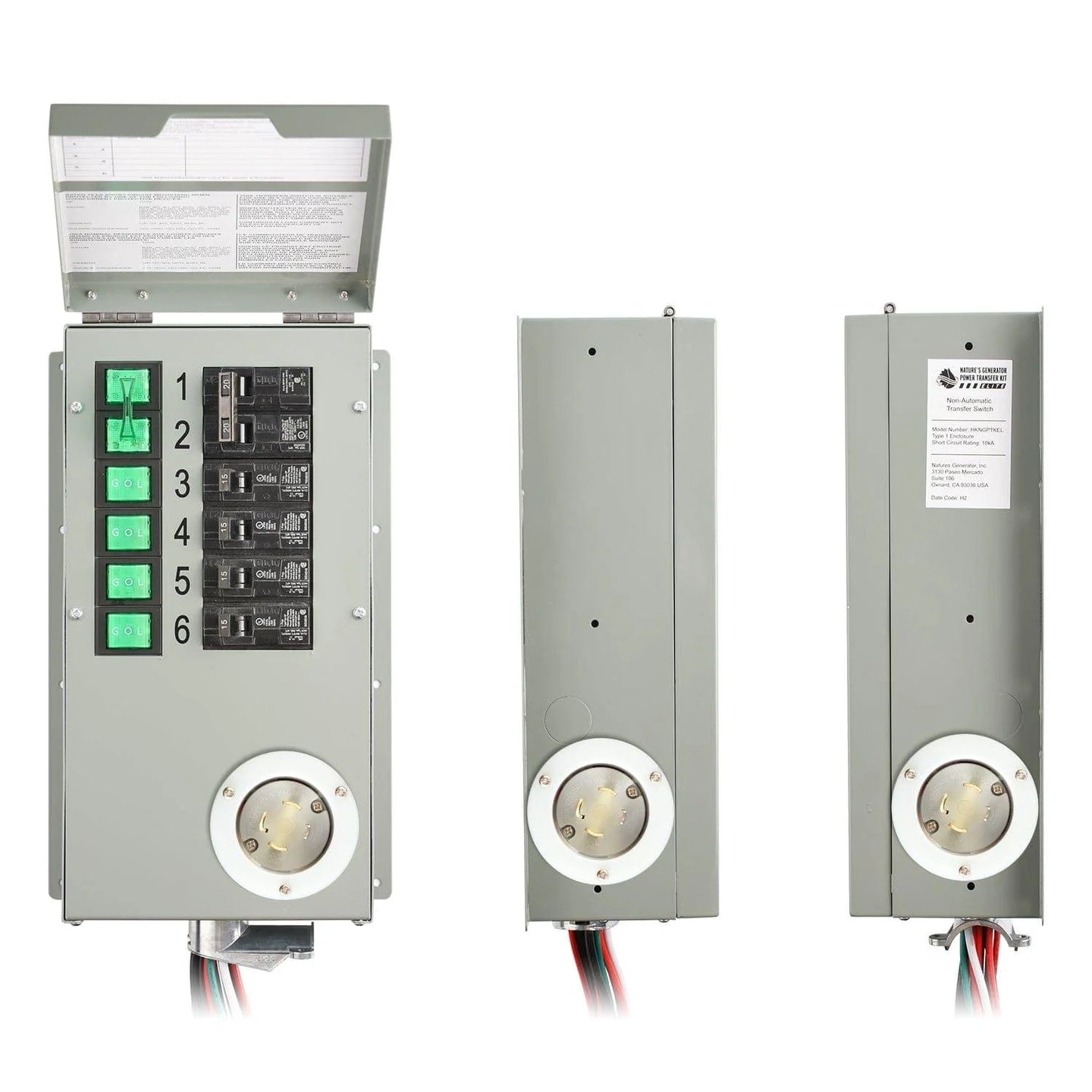

Powerhouse Power Transfer Kit

Features and Details

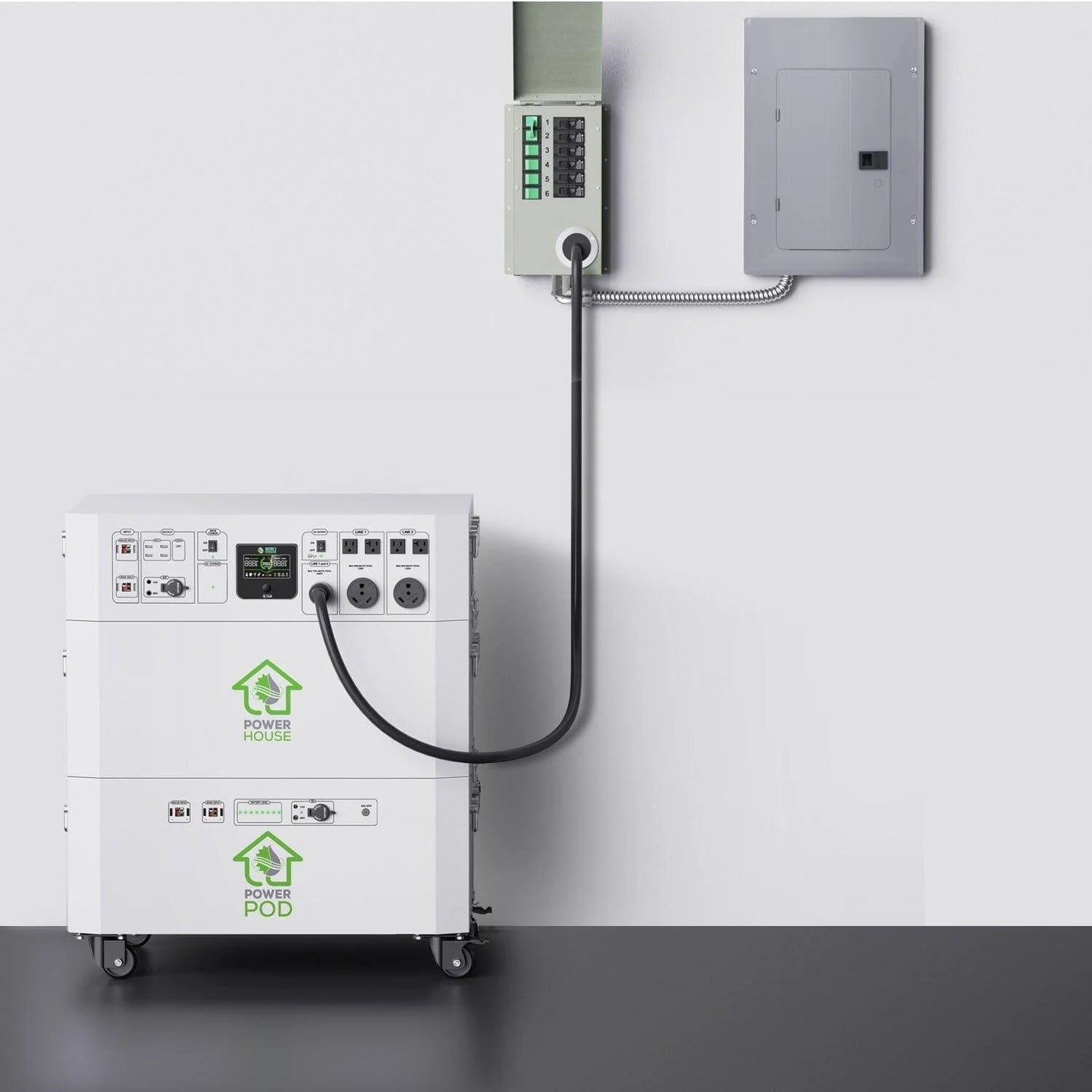

As the Power Transfer Kit links Nature's Generator Powerhouse to the existing power lines in your indoor load center, you can continue powering hardwired items like your ceiling lights or bulky items like your refrigerator without moving them around or other items in the tight corner that are difficult to be unplugged.

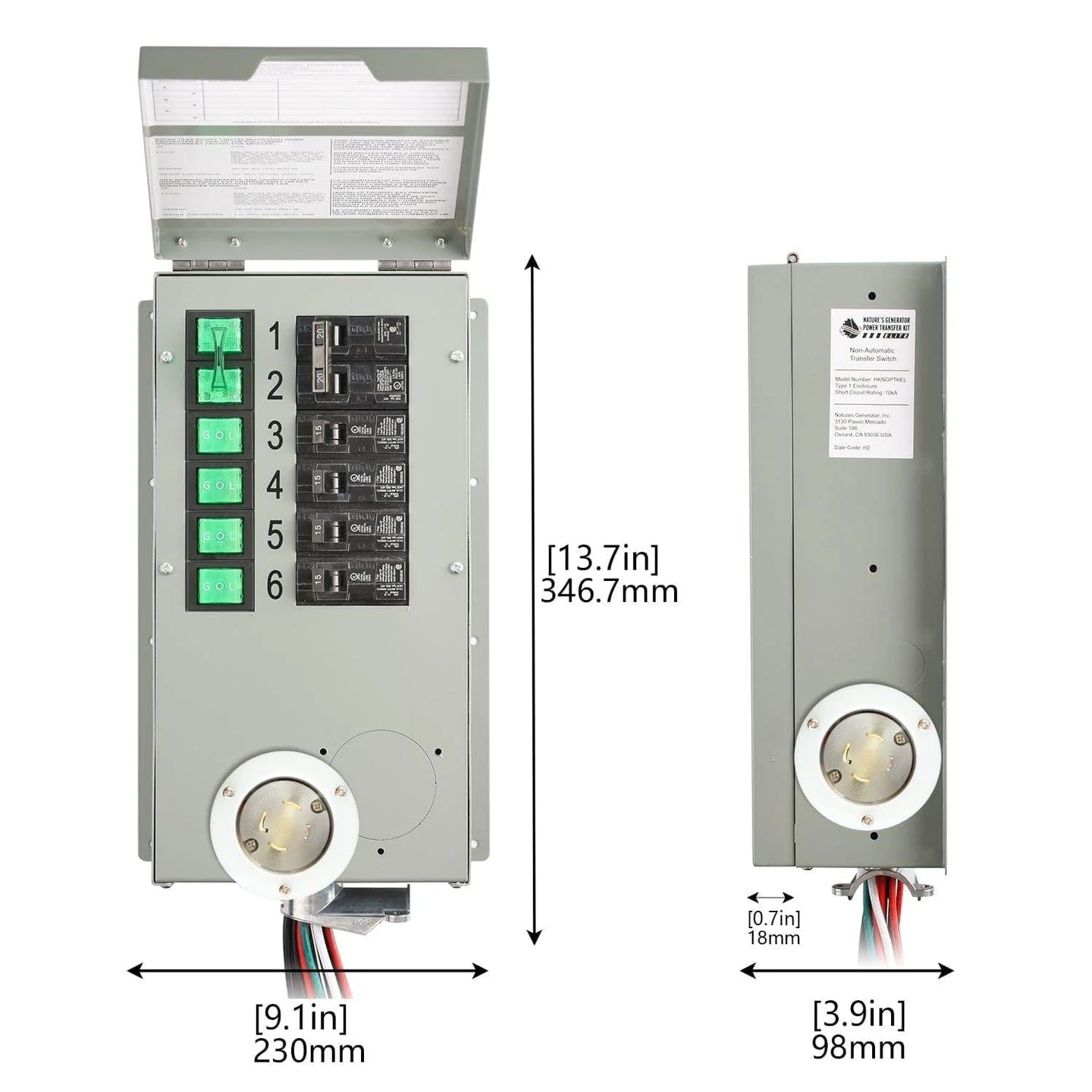

Dimensions

Dimensions : 9.1 inch x 13.7 inch x 3.9 inch (23.0 cm x 34.7 cm x 9.8 cm)

How to use

•Fit the female connector of the included power cord into the power inlet of your Power Transfer Switch.

•Insert the male plug into any of the AC outlets on the Nature's Generator.

General

Voltage: 240V
Number of Circuits: 6 circuits

Weight

Weight out of box: 10.1 lbs. (4.6 Kg)

Certification

SGS Certified - UL1008


*IMPORTANT: Installation of the Power Transfer Kit must be performed by a qualified electrician in compliance with all applicable electrical codes. Do not charge Nature's Generator by wall through AC input port when using Power Transfer Kit.
