Specification & Technical Information

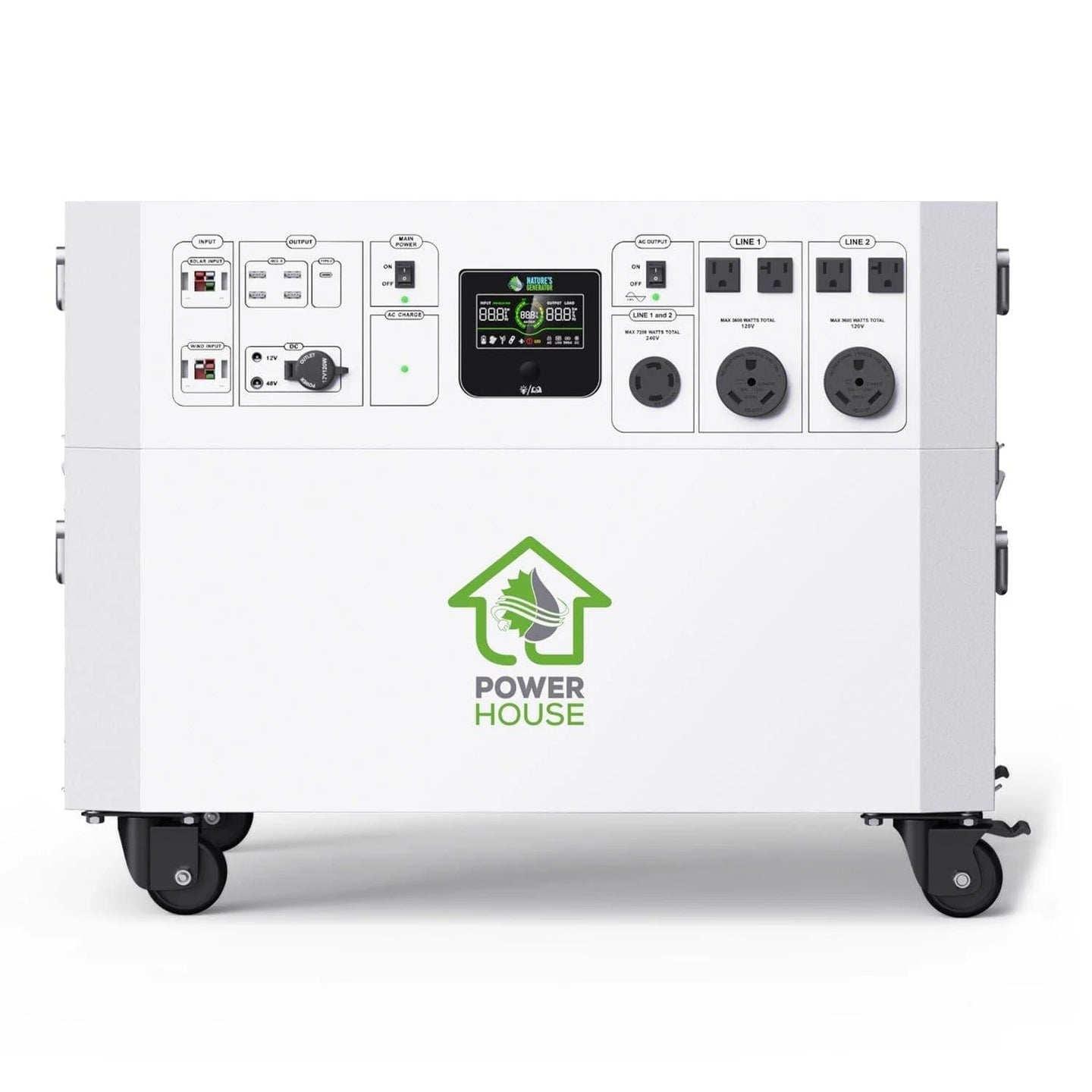

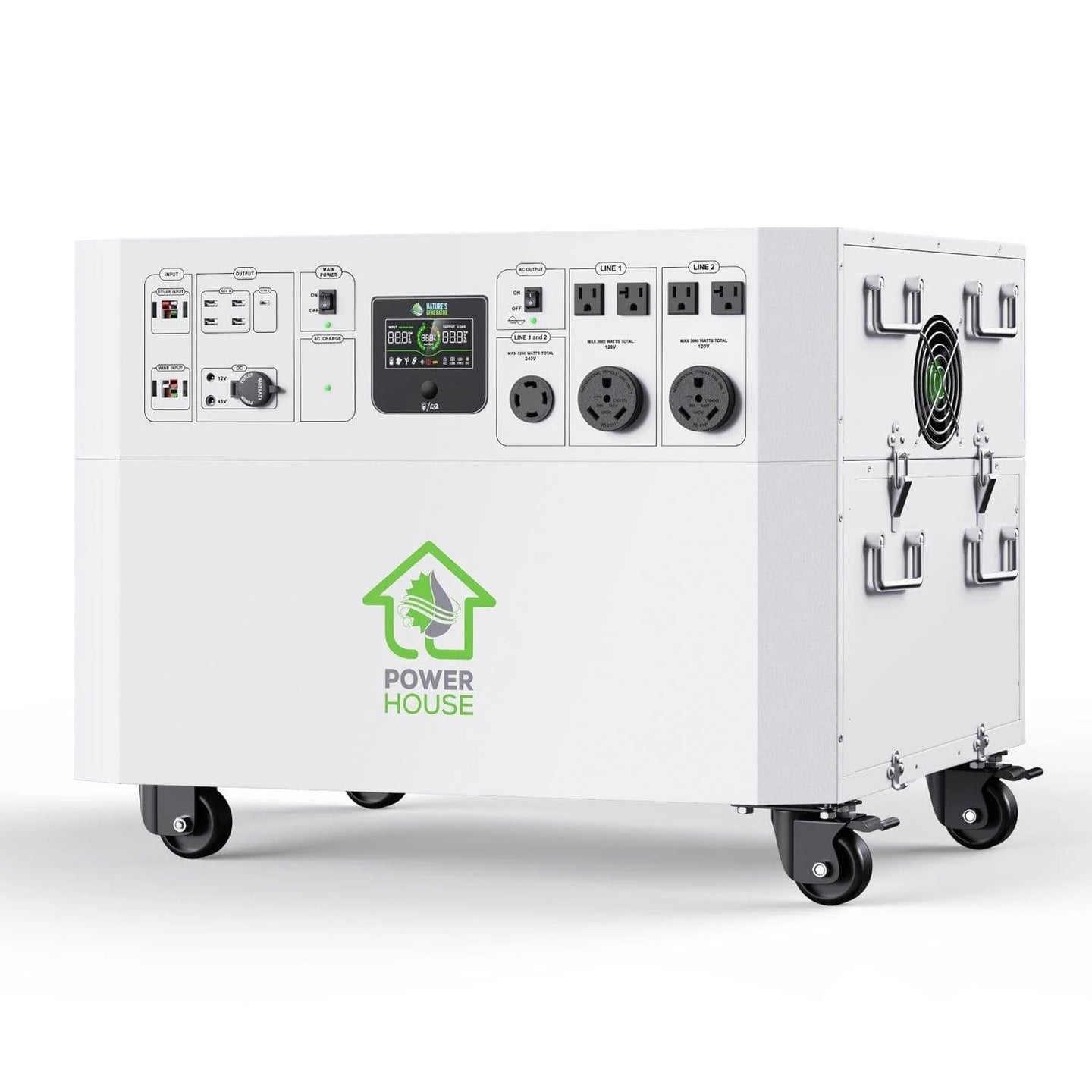

Powerhouse
Battery

Type: AGM Sealed Lead Acid
Capacity: 48V 100Ah (4800Wh)
Self-discharge: Recommend to recharge every 4 months

Dimensions

 Power house : 28 x 18 x 19 inches (720*466*472.8mm)

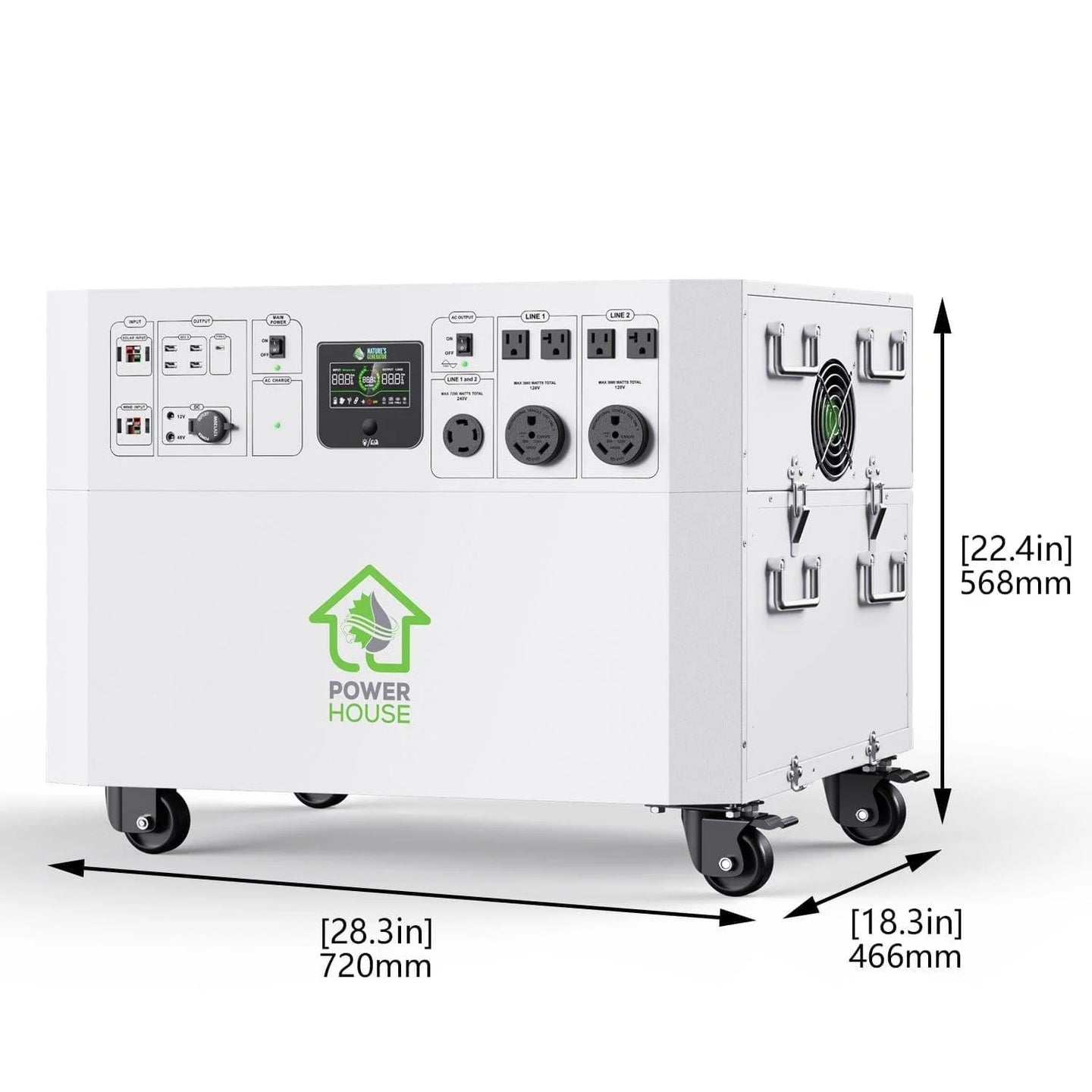

Power house with wheel: 28 x 18 x 22.36 inches (720*466*568mm)

Inverter

Output Power: 7200 watt max
Output voltage: 240V Split Phase
Output voltage: 120V Single Phase
Output frequency: 60Hz
Output Sine Wave: Pure sine wave
Output Phase: Split phase

Operating temperature

32-104 °F (0-40 °C)

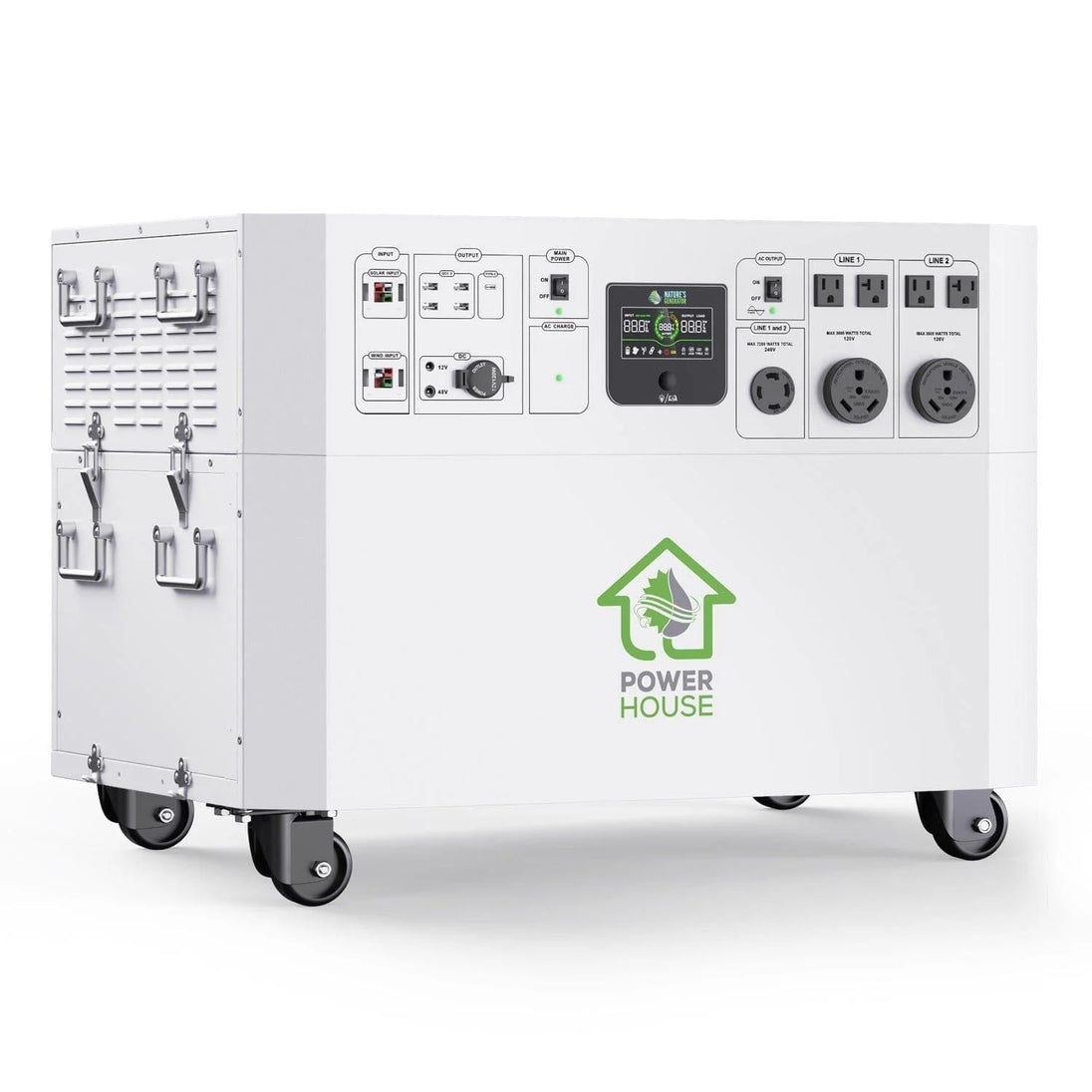

Ports

USB -A Port:  5V, up to 3A (15W)
12V DC Port: up to 20A (240W max)

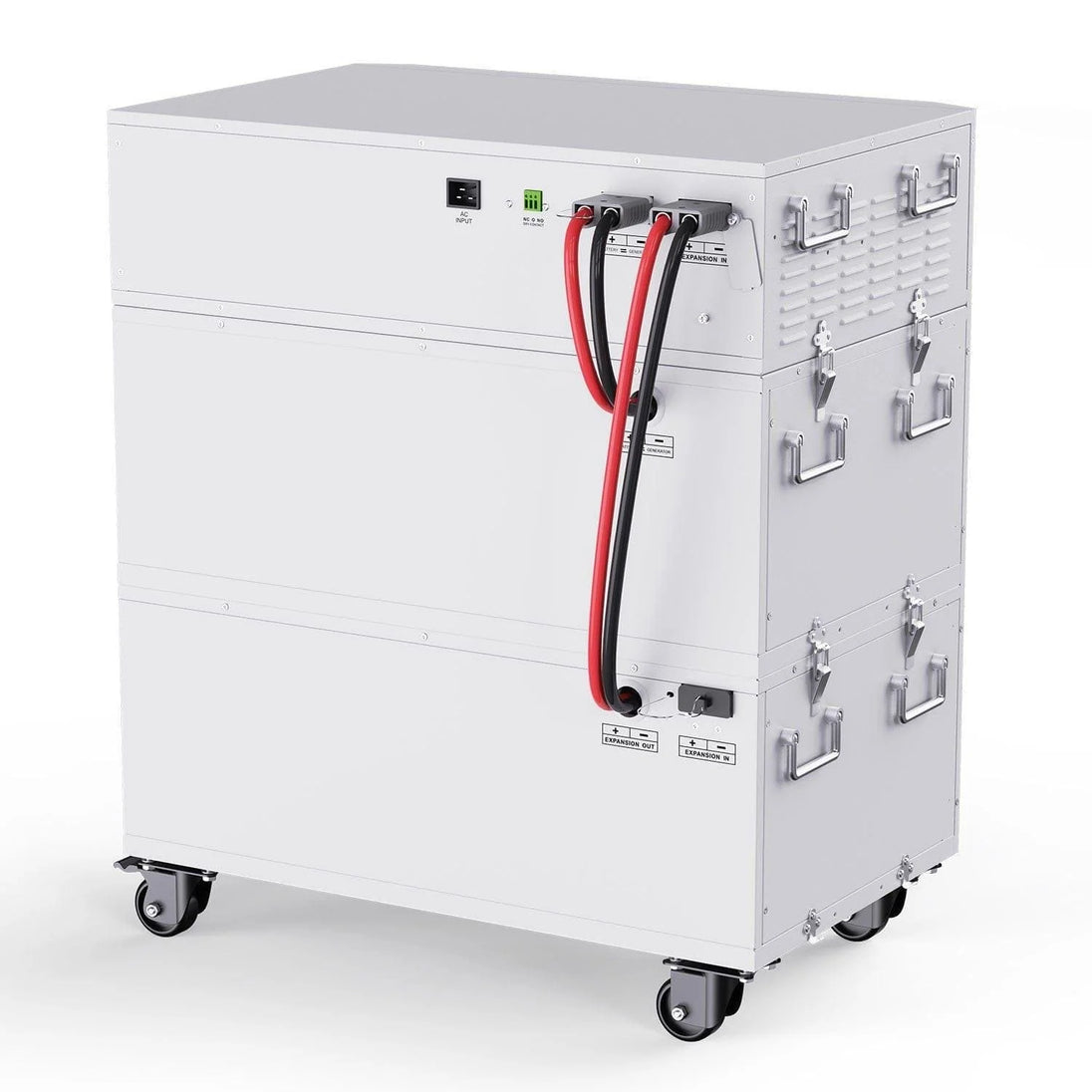

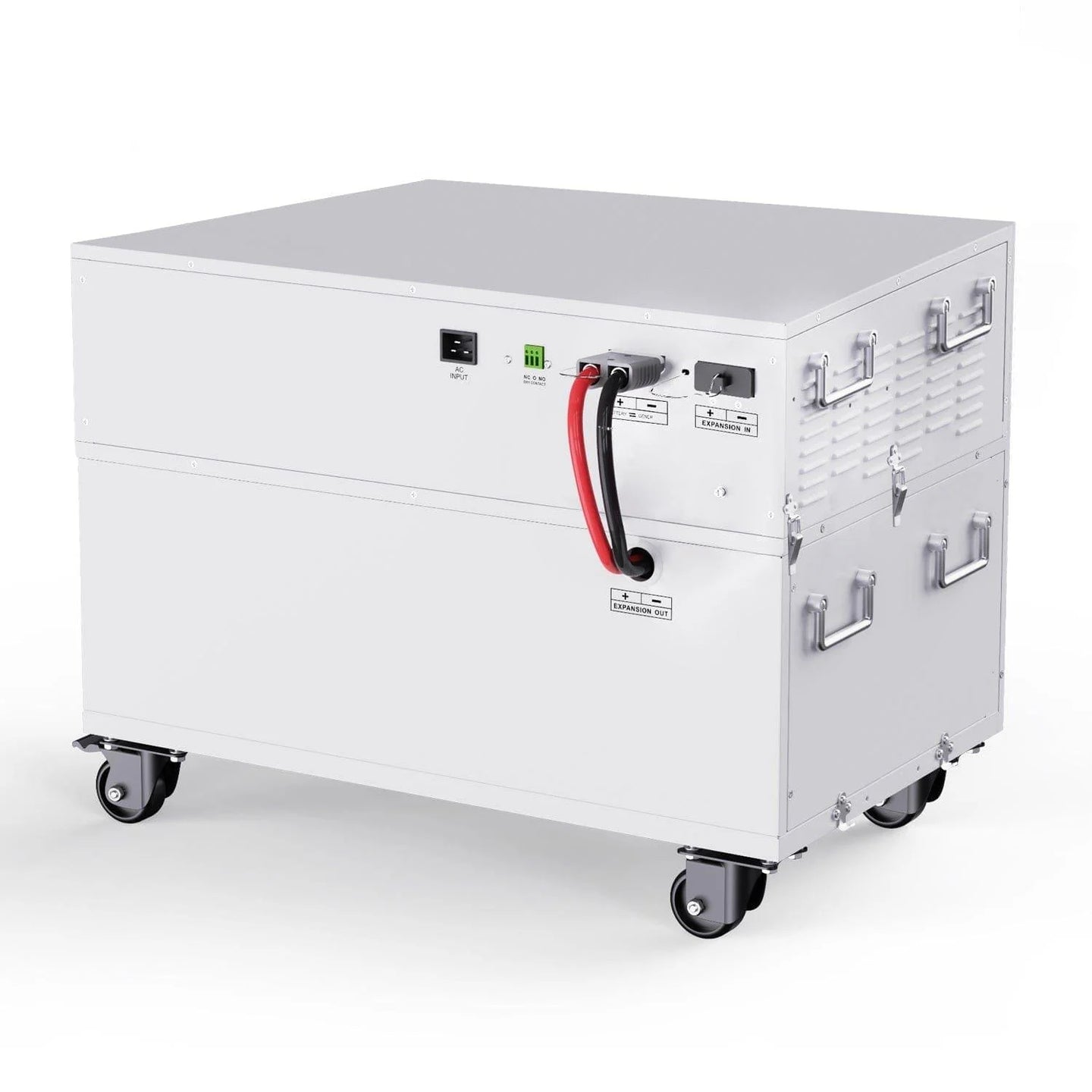

Expansion Port: 350A fuse

Storage Temperature

 23–111 °F (-5–45 °C)

Charges

AC Charger: 1300W, 120V AC
AC Charger Indicator: red (charging) and green (charged)
Solar Charger: 2000W
Wind Charger: 1000W

Weight

434 lbs (197 kg)

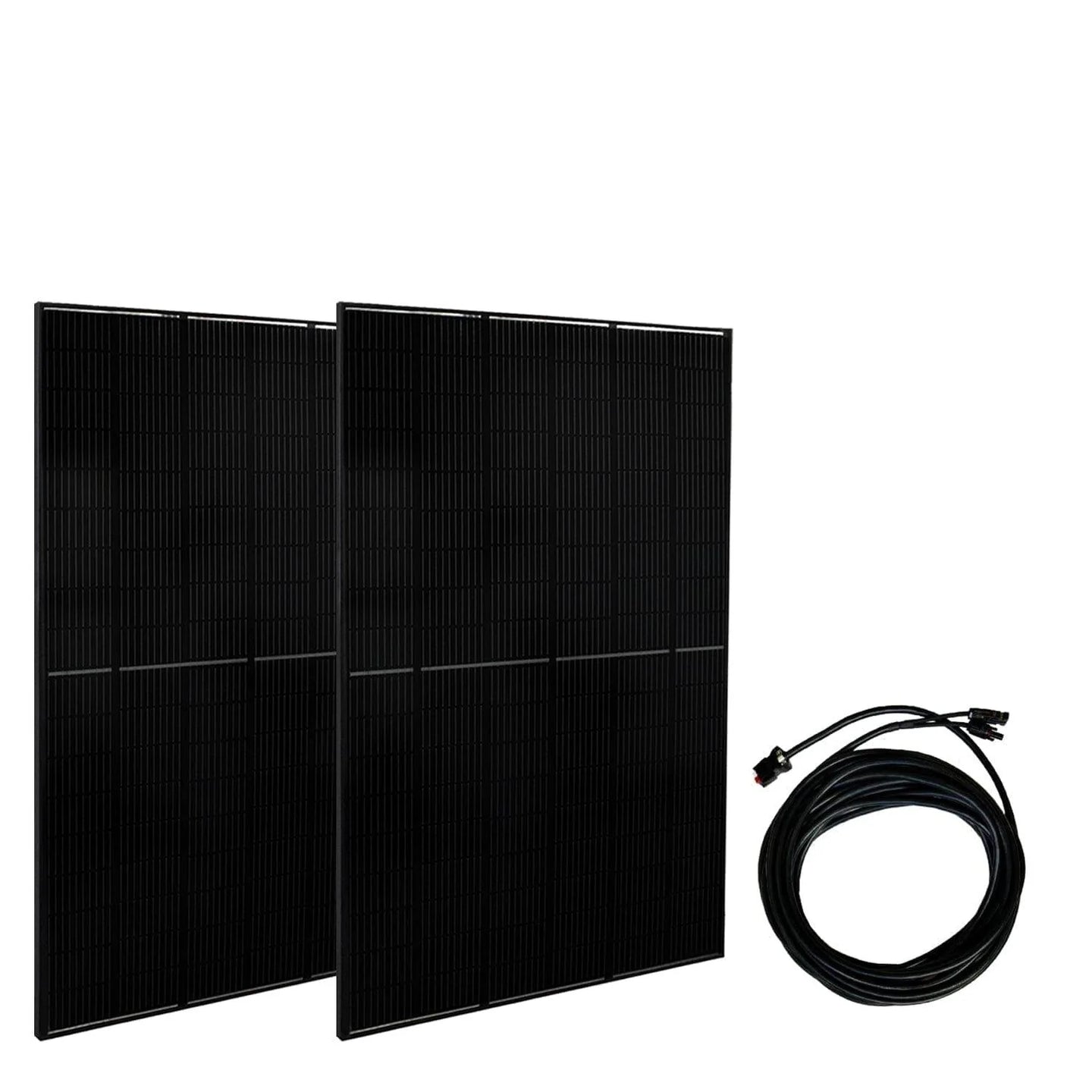

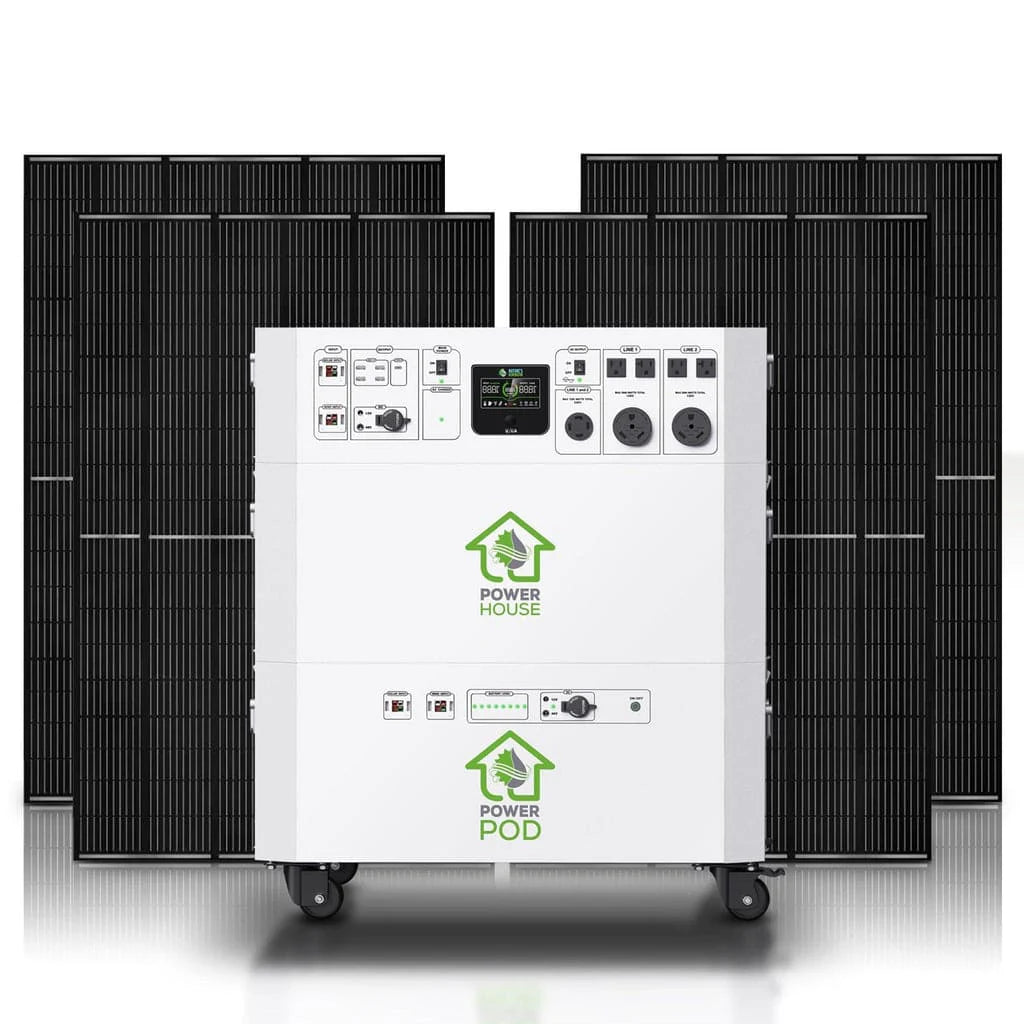

Powerhouse Power Panel

Power Rating & Characteristics

Maximum Power (Pmax): 410W
Cell Type: Mono PERC 182×91mm
No.of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy

Dimensions

1724×1134×30mm (67.87×44.64×1.18 inch)

Front Glass

3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass

Operation Temperature

-40℃~+85℃ (-40°F ~+185°F )

Junction Box

IP68 Rated, connector compatible with MC4

Output Cables

1200mm (47.24 inch)

Fire rating

UL: Type 1, IEC: Class C

Weight

20.5 kg (45.19 lbs)
