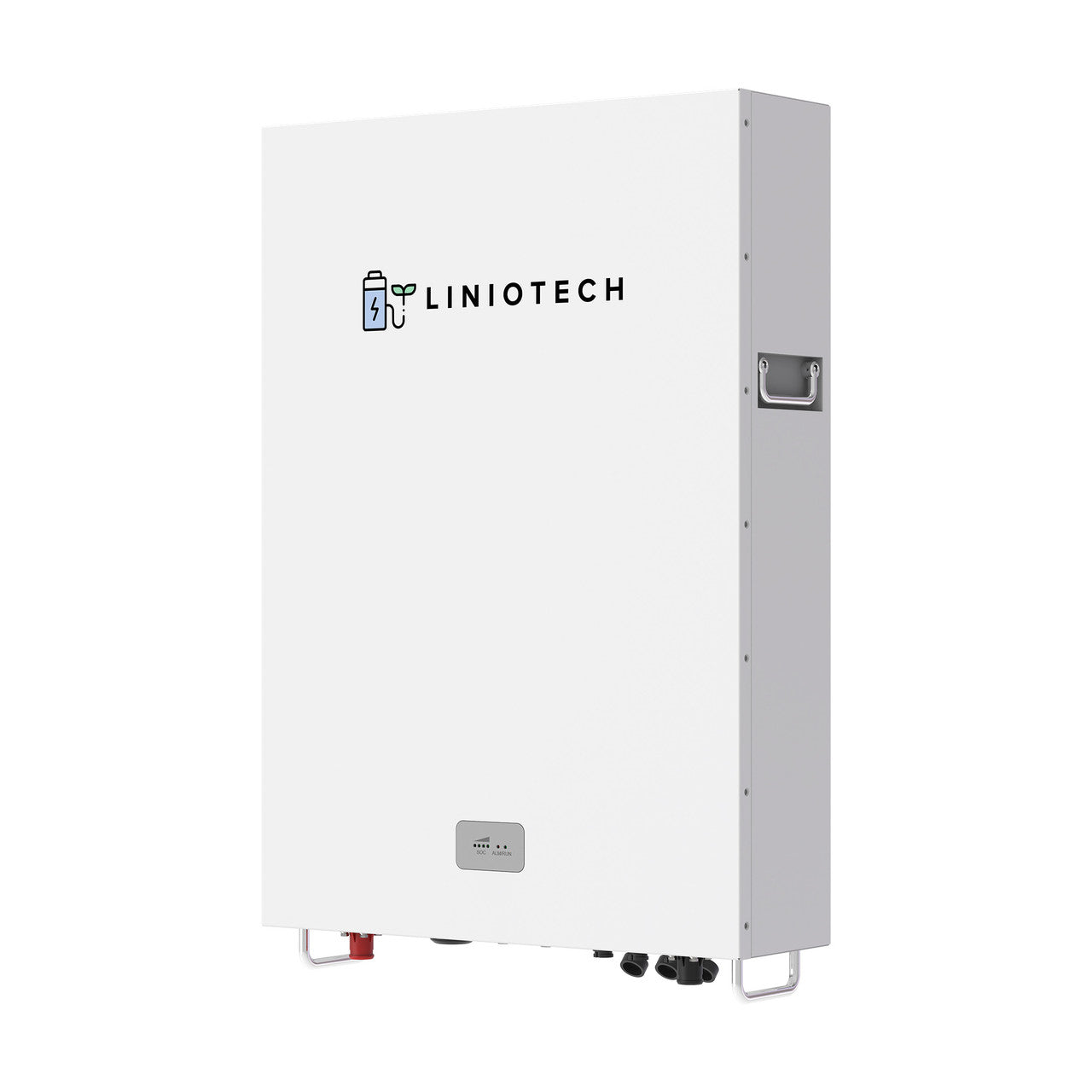

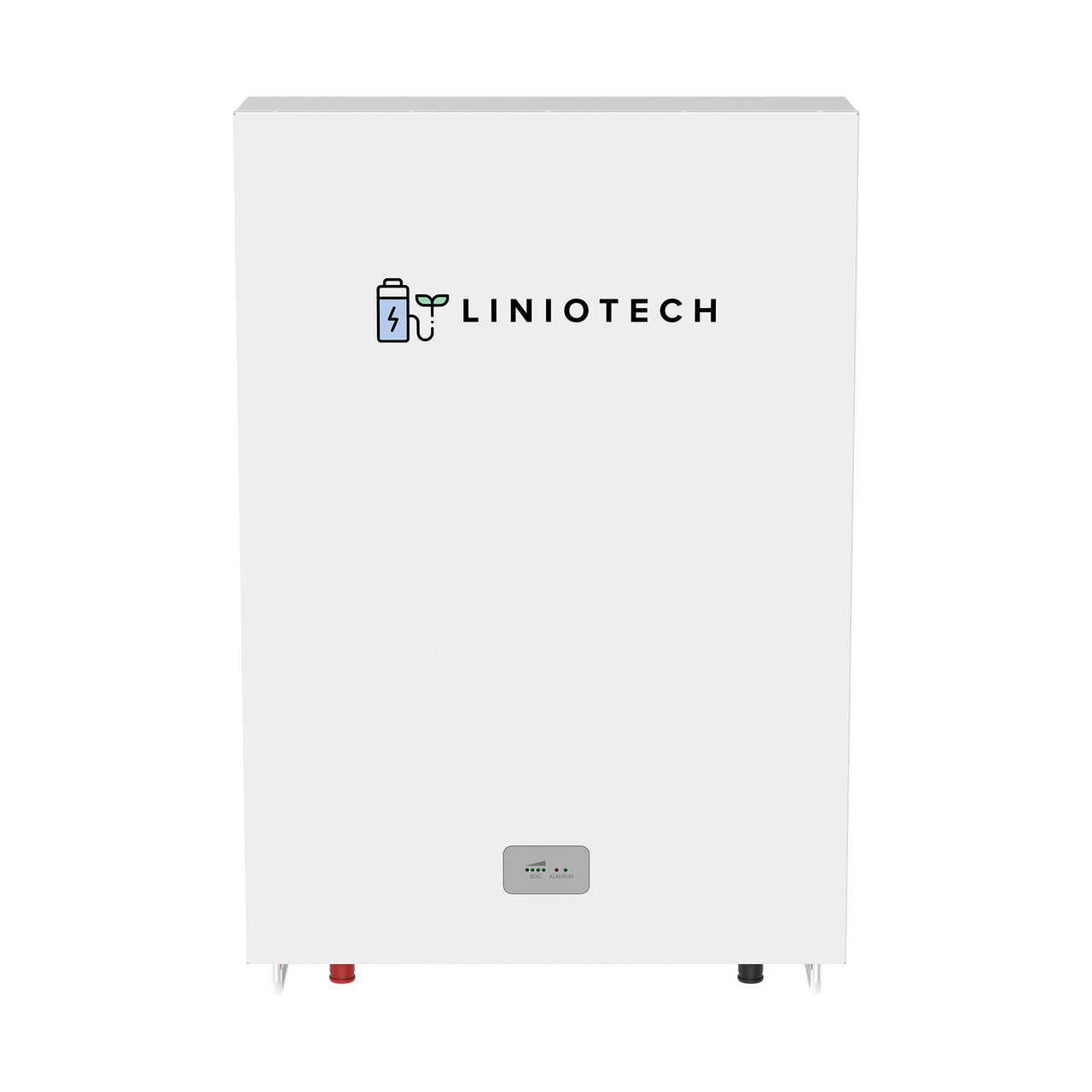

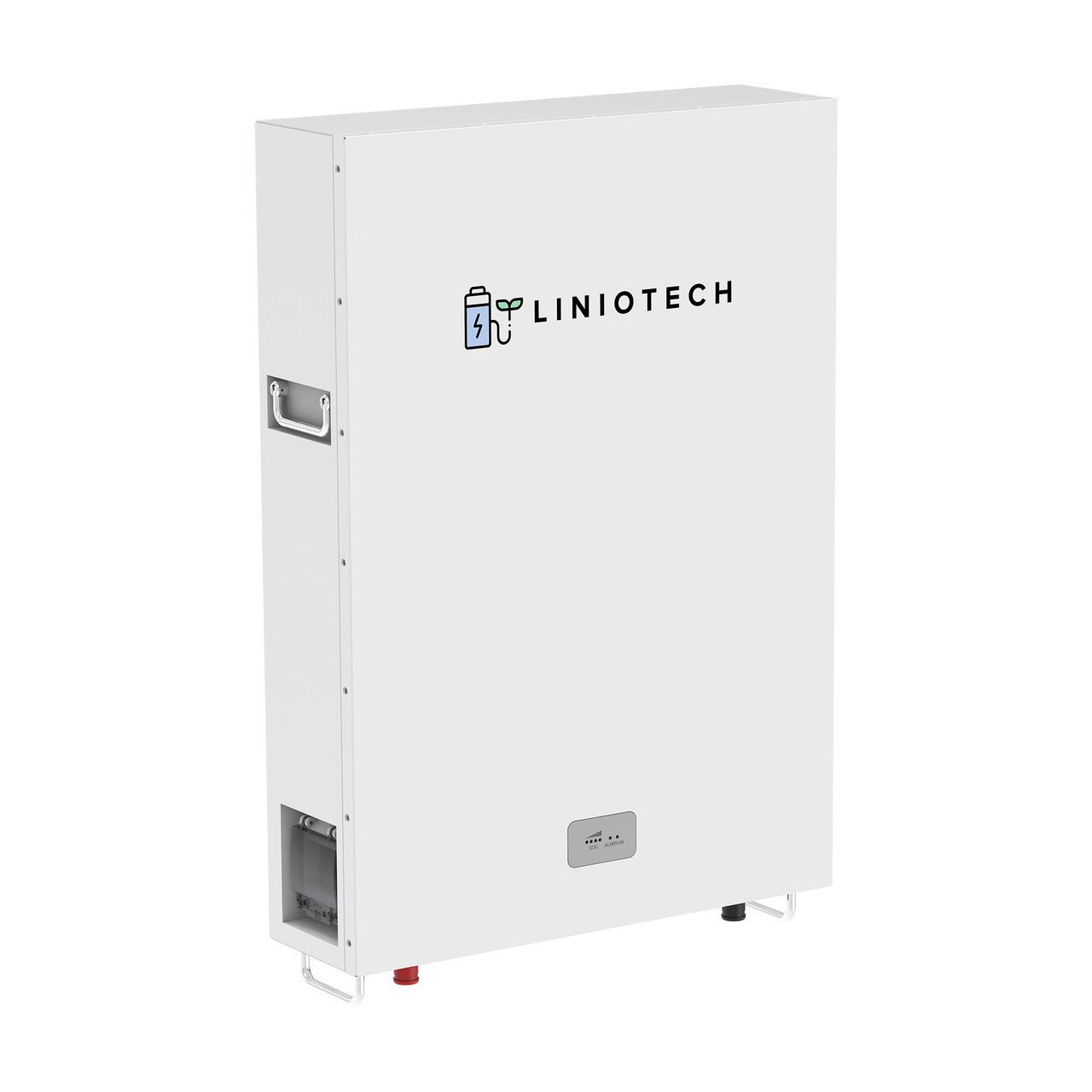

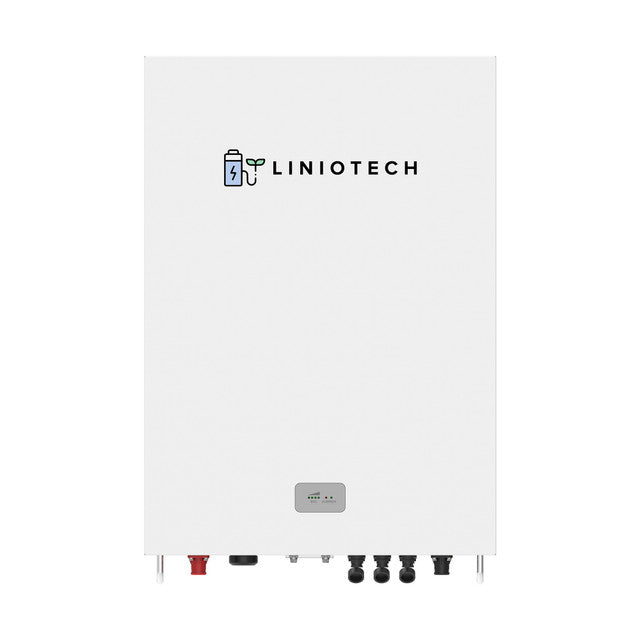

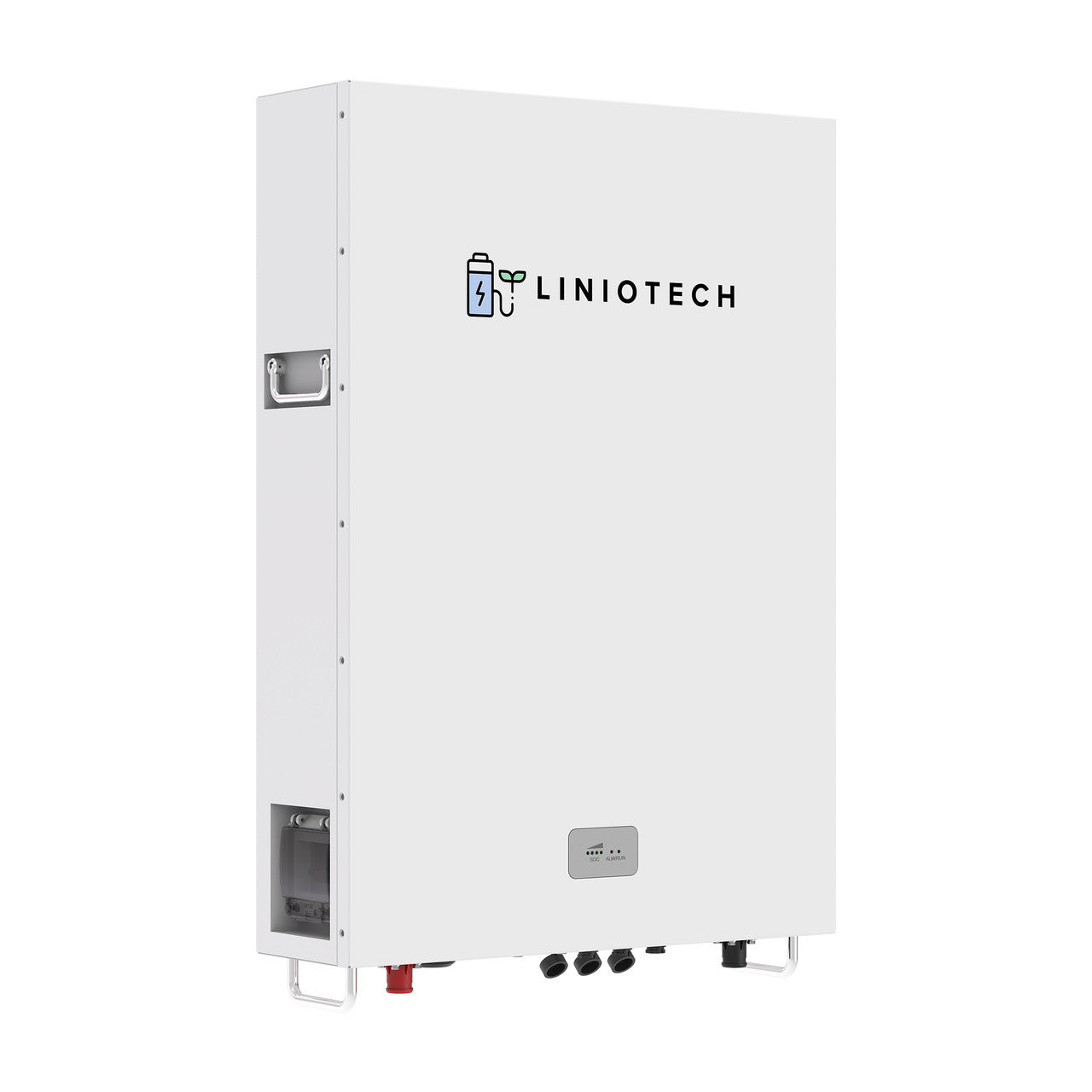

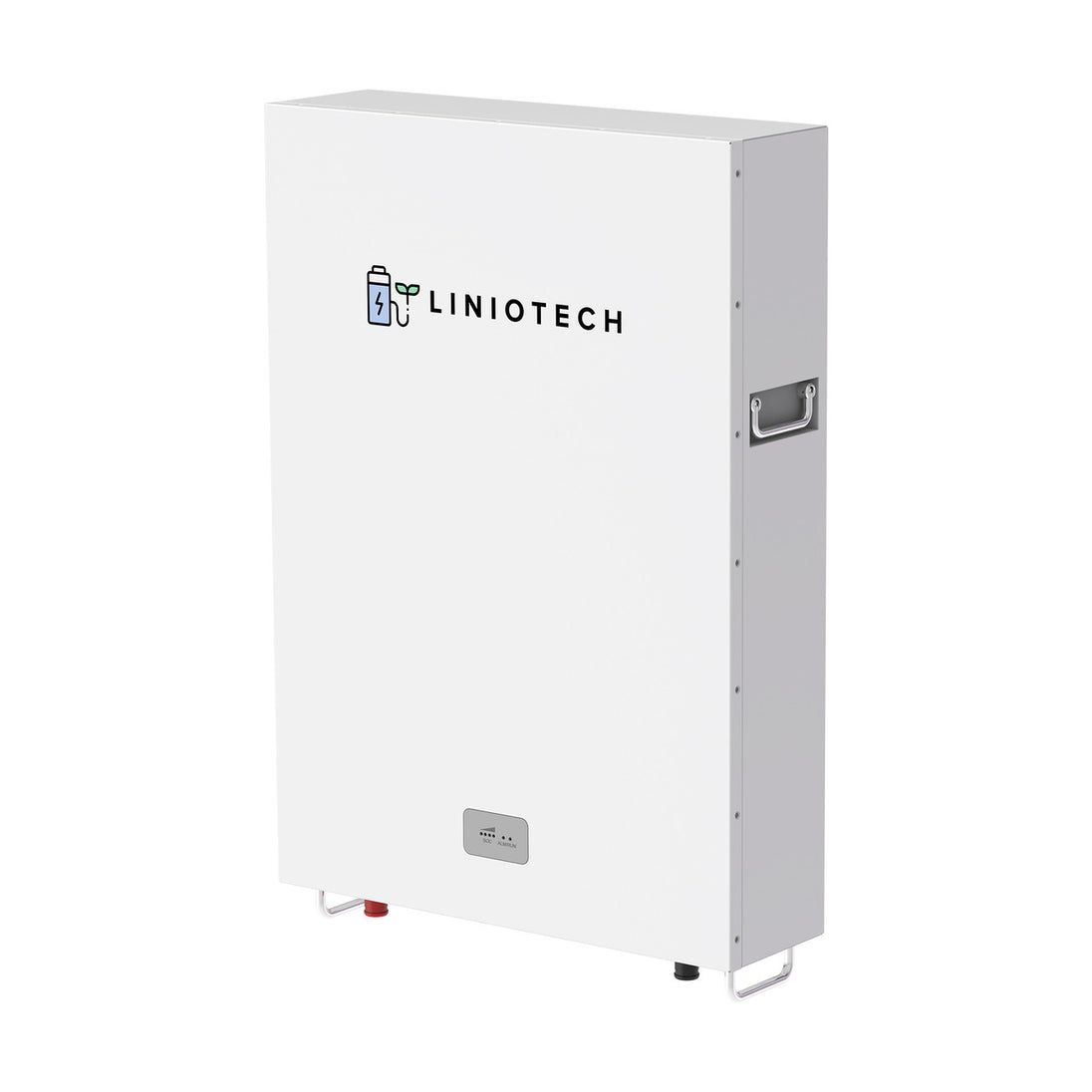

LTN Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Your system detects outages, powers your home and electric vehicle with backup energy and automatically recharges with sunlight to keep your appliances running for days. Pair with solar and recharge with sunlight to keep your appliances running for days. Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining. Use Power storage wall alone or combine it with other LTN products to save money, reduce your carbon footprint and prepare your home for power outages.


MODEL NO

LTN051100A-B-GBP2

LTN051200A-B-GBP2 LTN051280A-B-GBP2
Battery Chemistry LiFePO4

Capacity (Ah)

100

200 280
Scalability Max.16pcs in parallel (81.92kWh) Max.16pcs in parallel (162kWh) Max.16pcs in parallel (229kWh)

Nominal Voltage (V)

51.2
Operating Voltage (V) 46-56

Energy (kWh)

5.12 10.24 14.34

Usable Energy (kWh)

4.61 9.22 12.91

Charge/Discharge Current (A)

Recommend

50
100 100

Max.

100 150 150

Peak(2mins,25℃)

120 200 200
Other Parameter
Recommend Depth of Discharge 80%
Dimension (W/H/D,mm) 480*615*160 550*720*200 900*675*200

Weight Approximate (kg)

62.50 102.50 128.50
Master LED Indicator 4 LED (SOC:25%~100%)
2 LED (working, alarming, protecting)

IP Rating of Enclosur

IP65
Working Temperature Charge:0℃~55℃ Discharge:-20℃~55℃

Storage Temperature

0℃~35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) ≥6500 ≥8500

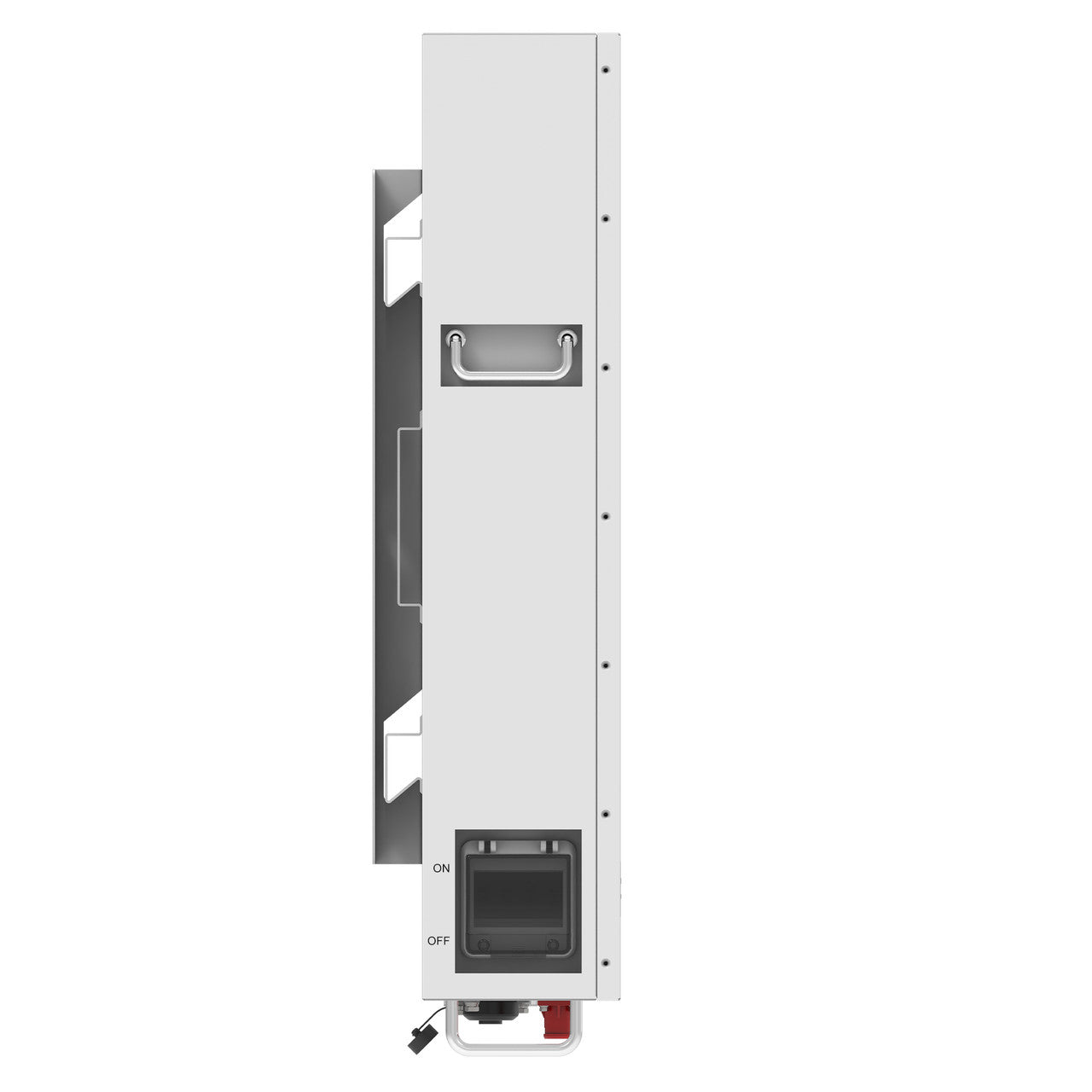

Installation Wallmounted

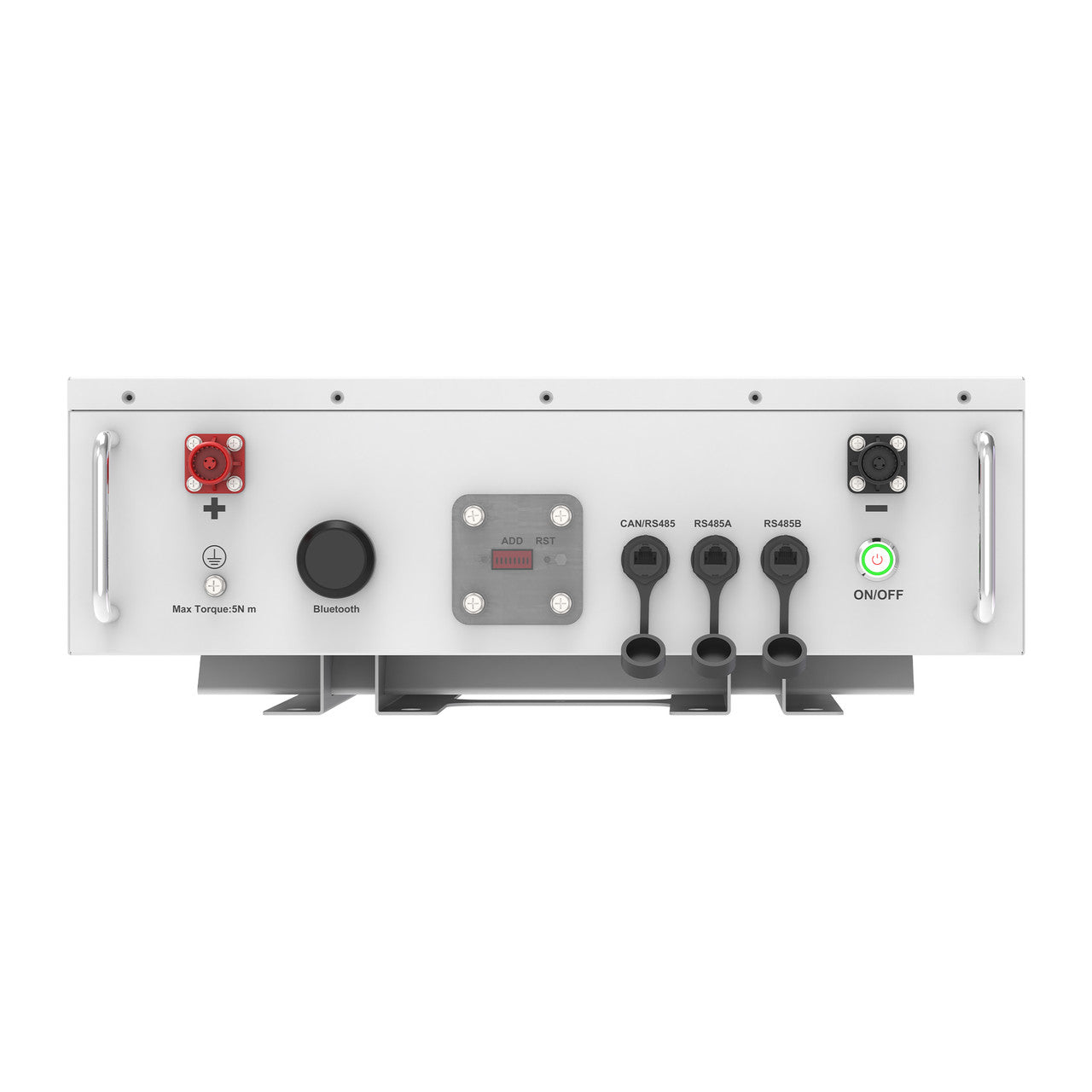

Communication Port CAN2.0, RS485
Warranty Period 10 years 15 years
Life Cycle Power During Warranty Period 22.42MWh@80% EOL 44.84MWh@80% EOL 64.80MWh@80% EOL
Certification MSDS, UN38.3
