Power Outage:

Technical Specifiacation

Battery:

Type: Lithium Iron Phospate (LiFePO4)

Capacity: 51.2V 205Ah (10496Wh)

Life Cycles: >6000 Cycles

Self DIscharge: Recommended recharging every 6 months

Inventer:

Output Continous Power: 10,000W

Outpeak Peak Power: 20,000W

Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases

Output Frequency: 60Hz

Output Power Form: Pure Sine Wave

Auto Switching: <20ms

Output Ports:

4x NEMA 5-20R Outlest

1x NEMA TT-30R Outlet

1x NEMA L14-30R Outlet

1x NEMA 14-50R Outlet

Input Ports:

2x Solar Input Ports

1x Wind Input Port

1x 120Vac Input Port

1x 208Vac or 240Vac Input Port

Charges:

120Vac Charger: 1000W

208Vac or 240Vac Charger: 4500W

Wind Charger: 350W

Solar Charger: 12,000W 120Vdc-550DVdc

Solar Charge Mode: MPPT

Dimension and Weight:

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar

Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar

Generator Weight: 152 lbs (69 kg)

Battery Weight: 213 lbs (96.6 kg)

General:

Optimal Operating temperature: 68 – 86°F (20 – 30°C)

Storage Temperature: 14 – 113°F (-10 – 45°C)

Battery Charging Temperature: 32 – 113°F (0 – 45°C)

Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)

Certification:

  • Certificate of Compliance

Off- Grid:

Technical Specifiacation

Battery:

Type: Lithium Iron Phospate (LiFePO4)

Capacity: 51.2V 205Ah (10496Wh)

Life Cycles: >6000 Cycles

Self DIscharge: Recommended recharging every 6 months

Inventer:

Output Continous Power: 10,000W

Outpeak Peak Power: 20,000W

Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases

Output Frequency: 60Hz

Output Power Form: Pure Sine Wave

Auto Switching: <20ms

Output Ports:

4x NEMA 5-20R Outlest

1x NEMA TT-30R Outlet

1x NEMA L14-30R Outlet

1x NEMA 14-50R Outlet

Input Ports:

2x Solar Input Ports

1x Wind Input Port

1x 120Vac Input Port

1x 208Vac or 240Vac Input Port

Charges:

120Vac Charger: 1000W

208Vac or 240Vac Charger: 4500W

Wind Charger: 350W

Solar Charger: 12,000W 120Vdc-550DVdc

Solar Charge Mode: MPPT

Dimension and Weight:

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar

Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar

Generator Weight: 152 lbs (69 kg)

Battery Weight: 213 lbs (96.6 kg)

General:

Optimal Operating temperature: 68 – 86°F (20 – 30°C)

Storage Temperature: 14 – 113°F (-10 – 45°C)

Battery Charging Temperature: 32 – 113°F (0 – 45°C)

Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)

Certification:

  • Certificate of Compliance

Energy Savings:

Technical Specifiacation

Battery:

Type: Lithium Iron Phospate (LiFePO4)

Capacity: 51.2V 205Ah (10496Wh)

Life Cycles: >6000 Cycles

Self DIscharge: Recommended recharging every 6 months

Inventer:

Output Continous Power: 10,000W

Outpeak Peak Power: 20,000W

Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases

Output Frequency: 60Hz

Output Power Form: Pure Sine Wave

Auto Switching: <20ms

Output Ports:

4x NEMA 5-20R Outlest

1x NEMA TT-30R Outlet

1x NEMA L14-30R Outlet

1x NEMA 14-50R Outlet

Input Ports:

2x Solar Input Ports

1x Wind Input Port

1x 120Vac Input Port

1x 208Vac or 240Vac Input Port

Charges:

120Vac Charger: 1000W

208Vac or 240Vac Charger: 4500W

Wind Charger: 350W

Solar Charger: 12,000W 120Vdc-550DVdc

Solar Charge Mode: MPPT

Dimension and Weight:

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar

Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar

Generator Weight: 152 lbs (69 kg)

Battery Weight: 213 lbs (96.6 kg)

General:

Optimal Operating temperature: 68 – 86°F (20 – 30°C)

Storage Temperature: 14 – 113°F (-10 – 45°C)

Battery Charging Temperature: 32 – 113°F (0 – 45°C)

Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)

Certification:

  • Certificate of Compliance

Grid Tie:

Technical Specifiacation

Battery:

Type: Lithium Iron Phospate (LiFePO4)

Capacity: 51.2V 205Ah (10496Wh)

Life Cycles: >6000 Cycles

Self DIscharge: Recommended recharging every 6 months

Inventer:

Output Continous Power: 10,000W

Outpeak Peak Power: 20,000W

Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases

Output Frequency: 60Hz

Output Power Form: Pure Sine Wave

Auto Switching: <20ms

Output Ports:

4x NEMA 5-20R Outlest

1x NEMA TT-30R Outlet

1x NEMA L14-30R Outlet

1x NEMA 14-50R Outlet

Input Ports:

2x Solar Input Ports

1x Wind Input Port

1x 120Vac Input Port

1x 208Vac or 240Vac Input Port

Charges:

120Vac Charger: 1000W

208Vac or 240Vac Charger: 4500W

Wind Charger: 350W

Solar Charger: 12,000W 120Vdc-550DVdc

Solar Charge Mode: MPPT

Dimension and Weight:

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar

Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar

Generator Weight: 152 lbs (69 kg)

Battery Weight: 213 lbs (96.6 kg)

General:

Optimal Operating temperature: 68 – 86°F (20 – 30°C)

Storage Temperature: 14 – 113°F (-10 – 45°C)

Battery Charging Temperature: 32 – 113°F (0 – 45°C)

Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)

Certification:

  • Certificate of Compliance

What's in the Box

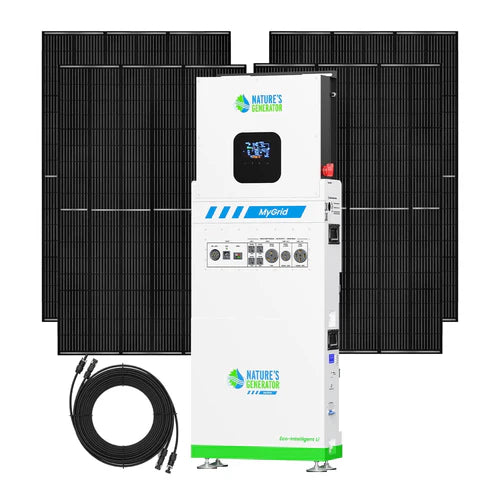

MyGrid 10k + 4x Rigid 410W Solar Panel

NGMGTNAU_PNG.png__PID:f66ee87b-dac4-4eb8-9135-1b2b36fd049e

1x Nature's Generator MyGrid 10K Generator

4x 410W Rigid Solar Panel

1x AC Power Cord

1 set of 50 Foot Quick Release MC4 Extension Cable

1 set Battery Cables

1 set Generator Battery Communication Cable

1 set Generator Mounting Bar with Bolts and Nuts

1 set Side Security Brackets and Screws

1 set Anchor Chains

1x User Guide

MyGrid 10k + 4x Folding 400W  Solar Panel

NGMGTNAUF_PNG.png__PID:9e4c4bb5-8dea-4232-9aeb-aa67bf6ec2fa

1x Nature's Generator MyGrid 10K Generator

4x 400W Folding Solar Panel

1x AC Power Cord

1 set of 50 Foot Quick Release MC4 Extension Cable

1 set Battery Cables

1 set Generator Battery Communication Cable

1 set Generator Mounting Bar with Bolts and Nuts

1 set Side Security Brackets and Screws

1 set Anchor Chains

1x User Guide

MyGrid 10k + Solar Battery  + 8x Rigid + 410W Solar Panel

NGMGTNPT_PNG.png__PID:0ef82245-dc77-478f-b711-adec4fc8238b

1x Nature's Generator MyGrid 10K Generator

2x Nature's Generator MyGrid 10K Battery

8x 410W Rigid Solar Panel

1x AC Power Cord

1 set of 50 Foot Quick Release MC4 Extension Cable

1 set Battery Cables

1 set Generator Battery Communication Cable

1 set Generator Mounting Bar with Bolts and Nuts

1 set Side Security Brackets and Screws

1 set Anchor Chains

1x User Guide

MyGrid 10k + Solar Battery + 8x Folding 400W  Solar Panel

NGMGTNPTF_PNG.png__PID:a2235f5e-9ccf-402a-b8b8-a22197f02076

1x Nature's Generator MyGrid 10K Generator

2x Nature's Generator MyGrid 10K Battery

8x 400W Folding Solar Panel

1x AC Power Cord

1 set of 50 Foot Quick Release MC4 Extension Cable

1 set Generator Battery Communication Cable

1 set Generator Mounting Bar with Bolts and Nuts

1 set Side Security Brackets and Screws

1 set Anchor Chains

1x User Guide

Products Comparison

 Specifications MyGrid 10K Powerwall 2 Powerwall 3
Continous Power Output 10kW 5kW 11.5kW
120V/240V Split Phase Yes No Yes
120V/208V 2 of 3 Phases Yes No No
Power Expandability Yes Yes Yes
Battery Chemistry LiFePO4 Li NMC Li NMC
Battery Capacity 10kWh 13.5kWh 13.5kWh
Battery Expandability Yes No Yes
Battery Life span 2,500–9,000 charge cycles/Up to 10 years 3,000–7,000 cycles/2-3 Years 3,000–7,000 cycles/2-3 Years
Solar Charging Yes Yes Yes
Wind Charging Yes No No
120V/240V AC Charging Yes Yes Yes
120V/208V AC Charging Yes No No
120V AC Charging Yes No No
Installation Duration Minutes Days Days
Installation Complexity Easy Complicated Complicated
Tenant Friendly & Relocatable Yes No No
Price $ $$$ $$$$$

**Disclaimer: All information about the Powerwall was sourced from publicly available data on Google and the official website. While we strive for accuracy, some details may be outdated. Please verify any critical information independently.
